Over-expressing Akt in T cells to resist tumor immunosuppression and increase anti-tumor activity
© Wu et al. 2015
- Received: 9 August 2014
- Accepted: 19 August 2015
- Published: 27 August 2015
Tumor employs various means to escape immunosurveillance and inhibit immune attack, and strategies have been developed to counteract the inhibitory signals. However, due to the complex suppressive mechanisms in the tumor microenvironment, blocking one or a few inhibitory signals has only limited effects on therapeutic efficacy. Instead of targeting tumor immunosuppression, we considered from another point of view, and hypothesized that manipulating T cells to make them resist any known or unknown suppressive mechanism may be more effective for cancer treatment.
We used OT-1 cells transduced with retroviruses encoding Akt and human peripheral blood lymphocytes (PBLs) transduced with retroviruses encoding both Akt and a chimeric antigen receptor (CAR) specific for tumor antigen EpCAM to examine the effect of over-expressing Akt on tumor specific T cells in tumor environment.
We show that Akt activity of T cells in the tumor environment was inhibited, and over-expressing Akt in OT-1 cells increased the cytokine production and cell proliferation in the presence of B16-OVA tumor cells. What’s more, adoptive transfer of OT-1 cells over-expressing Akt inhibited B16-OVA tumor growth and prolonged mouse survival. To examine if over-expressing Akt could increase the anti-tumor activity of T cells in human cancer, PBLs co-expressing EpCAM specific CAR and Akt were cultured with EpCAM-expressing human prostate cancer cells PC3M, and less inhibition on cell proliferation and less apoptosis were observed. In addition, adoptive transfer of PC3M specific T cells over-expressing Akt resulted in more dramatic tumor inhibitory effects in PC3M bearing NOD/SCID mice.
These data indicates that over-expressing Akt in tumor specific T cells increases T cell proliferation and activity in the tumor environment, and enhances anti-tumor effects of adoptively transferred T cells. Our study provides a new strategy to improve the efficacy of adoptive T cell therapy, and serves as an important foundation for clinical translation.
- Adoptive Transfer
- Chimeric Antigen Receptor
- Human Peripheral Blood Lymphocyte
- Activation Induce Cell Death
- Tumor Drain Lymph Node
Tumor immunosuppressive microenvironment is the major obstacle for successful clinical translation of immunotherapeutic approaches. Tumor employs different strategies to escape immunosurveillance, including impairment of the antigen presentation, up-regulating negative co-stimulatory signals, secretion of immunosuppressive factors, activation of pro-apoptotic pathways, and recruitment of different regulatory cell populations [1, 2]. By these various means, tumor induces a complex immunosuppressive microenvironment to evade immune response and restrict the effectiveness of cancer vaccine and adoptive transfer of tumor specific T cells.
With deeper understanding of the interactions between tumor and immune system, therapeutic strategies have been developed to resist immunosuppression, such as using antibodies to block CTLA-4 or PD-1 signaling, inhibiting IDO activity, depleting regulatory T cells, etc. . However, it’s easy to understand that, confronting such a complex immunosuppressive microenvironment, strategies targeting one or two inhibitory signals have only limited effects on therapeutic efficacy. Instead of dealing with multiple inhibitory factors, we considered if there is any means to manipulate effector T cells to make them resist any known or unknown immunosuppressive mechanism. Through analysis of T cell signaling pathways, we found that Akt is in the central node of immune modulation.
The serine/threonine kinase Akt (PKB) is utilized in a variety of signaling pathways from T cell growth factors such as IL-7R, and CD28 co-stimulatory signal [4, 5]. CD28 activation enables recruitment and activation of phosphatidylinositol 3-kinase (PI3K), resulting in the generation of phosphatidylinositol-3,4,5-trisphosphate (PIP3), which recruits pleckstrin homology (PH) domain containing proteins including Akt to the plasma membrane. After recruitment to the plasma membrane, Akt becomes phosphorylated and activated by PDK1, and then plays an important role in diverse cellular processes including cell survival, glucose metabolism, and cytokine synthesis [6–8]. Besides co-stimulatory receptors, co-inhibitory receptors also regulate Akt activation. Ligation of CTLA-4 and PD-1 both inhibit Akt activity, suggesting PI3K-Akt signaling is a major mechanism of immune regulation [9, 10]. Consistent with this, it has been reported that T cells expressing constitutively active Akt displayed increased viability in the absence of stimulation, and could grow rapidly and secrete cytokines in the absence of CD28 co-stimulation .
Based on these findings, we hypothesize that up-regulating Akt activity in tumor specific T cells could help T cells resist tumor immunosuppression and improve the anti-tumor effects of adoptive immunotherapy. To test this hypothesis, we used two different tumor models, B16-OVA tumor model and human prostate cancer PC3M tumor model, and demonstrated that over-expressing Akt in tumor specific T cells could increase T cell proliferation and cytokine secretion when co-cultured with tumor cells, and inhibit tumor growth in vivo. Our data suggests over-expressing Akt in effector T cells as a new strategy to improve the efficacy of adoptive T cell transfer for cancer.
OT-1 transgenic mice were purchased from the Jackson Laboratory, C57BL/6 mice and NOD/SCID mice were purchased from Vital River Laboratories. All mice were maintained under specific pathogen-free conditions in the animal facility of Cancer Institute, Chinese Academy of Medical Sciences (CAMS), and all procedures for animal experiments were approved by the Institutional Animal Use and Care Committee of CAMS.
The OVA-expressing tumor cell line, B16-OVA, was kindly provided by T.-C. Wu lab (Johns Hopkins Medical Institutions, Baltimore, MD) , and cultured in RPMI1640 supplemented with 10 % FBS, 2 mM L-glutamine, 1 mM sodium pyruvate, 2 mM non-essential amino acids, 50 units/ml penicillin and streptomycin. PC3M cell line was purchased from ATCC, and maintained in culture with DMEM medium (Gibco) supplemented with 10 % FBS.
Retroviral vector construction and retrovirus preparation
PLNCX-myr-HA-Akt1 (William Sellers, Addgene plasmid 9005) and pLNCX-HA-Akt1 (William Sellers, Addgene plasmid 9004) were obtained from Addgene . PLNCX empty vector was used as the control retrovirus. To construct EpCAM specific CAR and Akt co-expressing construct, HindIII/HpaI/BglII-IRES-XhoI/SalI/ClaI sequence was synthesized (IRES sequence corresponds to 1119–1693 of pIRES-G, with 1346G → C) and inserted into HindIII/ClaI multiple cloning sites of pLNCX retroviral vector to make pLNCX-IRES. EpCAM specific CAR consisting of an anti-EpCAM scFv (sequence corresponds to Genebank identifier AJ564232.1) , part of the extracellular domain and the entire transmembrane and intracellular domains of CD28, and the cytoplasmic domain of CD3ζ (the CD28 and CD3ζ sequence included corresponds to Genebank identifier HM852952.1)  was synthesized and inserted into HindIII/BglII of pLNCX-IRES to make pLNCX-CAR. Akt and myr-Akt were cloned from pLNCX-HA-Akt1 and pLNCX-myr-HA-Akt1 respectively, and inserted into XhoI/ClaI of pLNCX-CAR to make pLNCX-CAR-Akt and pLNCX-CAR-myr-Akt co-expressing constructs. Retroviruses were prepared using Retrovirus Packaging Kit Ampho (TaKaRa) and 293 T packaging cell line, following the manufacturer’s instruction.
Retroviral transduction of OT-1 cells and human PBLs
Splenocytes and lymph node cells of OT-1 transgenic mice were harvested, and red blood cells were removed by RBC lysis buffer (Biolegend). CD8+ T cells were isolated using mouse CD8a+ T cell isolation kit (Miltenyi Biotec), and then were stimulated with 1 ug/ml anti-mouse CD3 and 1 ug/ml anti-mouse CD28 antibodies (Biolegend) for 2 days at 1 × 106 cells/ml in RPMI medium (Gibco) supplemented with 10 % FBS, 1x nonessential amino acid, L-glutamine, sodium pyruvate, and penicillin-streptomycin, and 0.1 % β-mercaptoethanol. For retrovirus transduction, 24-well plates were coated with RetroNectin (TaKaRa) at 4 °C overnight according to the product’s manual, and blocked with 2 % BSA at room temperature for 30 min. After that, the plates were added with retrovirus supernatants at 300 ul/well and incubated at 37 °C for 6 h. Then the stimulated cells were transferred to the pre-coated wells at 1 × 106 cells/ml and cultured at 37 °C for 5 days in the presence of 100 U/ml recombinant human IL-2.
For PBL preparation, donor blood was obtained from healthy volunteers with consent from institutional review board of Cancer Institute, Chinese Academy of Medical Sciences, and written informed consent for participation in the study was obtained from participants. PBMCs were prepared by centrifugation of the blood on Ficoll-Hypaque density gradients (Sigma-Aldrich), and adherent cells were removed by plating in cell culture plates for 2 h. Then the cells were stimulated with 1 ug/ml OKT3 and 1 ug/ml anti-human CD28 antibodies (Biolegend) at 1 × 106 cells/ml for 2 days, and transduced with retroviruses as described above.
Cell lysis was performed on ice for 30 min in RIPA buffer with 1x protease inhibitor cocktail, 0.5 mM PMSF, 30 mM NaF, 1 mM Na3VO4 added freshly. After centrifugation at 1000 rpm at 4 °C for 10 min, the protein concentration of the supernatant was determined by BCA assay, and 40 ug of protein extract was subjected to SDS-PAGE and western blot following standard procedures. Phospho-Akt (Ser473) Rabbit mAb (Cell Signaling Technology), Akt (pan) Rabbit mAb (Cell Signaling Technology), and β-actin antibody (Santa Cruz Biotechnology) were used at 1:2000 to probe the western blots.
RT-PCR and quantitative real-time PCR
Total RNA was extracted using the RNeasy Mini kit (Qiagen) and was reverse transcribed using ReverTra Ace qPCR RT Master Mix with gDNA Remover (TOYOBO). PCR was performed with EmeraldAmp MAX PCR Master Mix (TAKARA), and the following primers were used: CAR, 5′- CCTTATGGTTACGACGAGTATGGTCTGG and 3′- AACAGTTTAGGAGGCTGCCCTGGTTTCT; β-actin, 5′-AAGAGAGGCATCCTCACCCT and 3′- TACATGGCTGGGGTGTTGAA. Real-time PCR was performed with iTaq Universal SYBR Green Supermix (BIO-RAD) using CFX96 Touch Real-Time PCR Detection System (BIO-RAD), and the primers were purchased from GeneCopoeia (Catalog# HQPCS0002).
Cells were stained with FITC or PE-conjugated CD8, IFN-γ, HLA-DR, CD80, B7-H1, TGF-β, IL-10 antibodies following standard protocol. All antibodies were purchased from Biolegend. CFSE cell proliferation kit (Life Technologies) was used to determine cell proliferation, and APC Annexin V apoptosis detection kit with PI (Biolegend) was used to detect cell apoptosis. Cells were analyzed by a FACS Calibur flow cytometer and Flowjo software.
Luciferase expressing cell line PC3M-luc was established by transducing PC3M with retroviruses encoding luciferase and selection with G418. To examine the cytotoxicity of PBLs transduced with different retroviruses, PC3M-luc cells were incubated with effector cells for 24 h, and then luciferin (Promega) was added at a final concentration of 0.3 mg/ml. 10 min later, luminescence imaging was conducted on IVIS system (Xenogen/Caliper Life Sciences).
Data are presented as mean ± SE. To determine the significance of differences between samples or groups, the student’s t-test or two-way ANOVA was used as indicated in the figure legends.
Akt expression in the T cells is down-regulated in the tumor microenvironment
Over-expressing Akt in OT-1 cells enhances anti-tumor effect in mouse B16 melanoma model

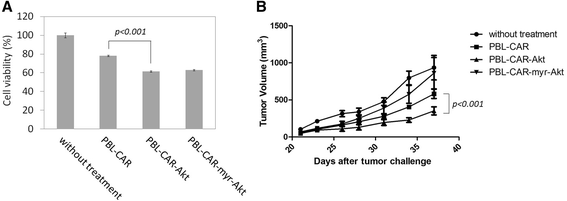

Human T cells engineered to over-express Akt exert enhanced anti-tumor activity
In this study, we show that Akt activity of T cells is down-regulated in tumor environment, and transducing Akt increases the proliferation, cytokine production, and anti-tumor effects of tumor specific T cells.
Akt phosphorylations in T cells incubated with tumor culture supernatant or T cells isolated from TDLN were inhibited (Fig. 1a and b), consistent with previous findings that the activation status of Akt in T cells is a primary determinant of T cell sensitivity to tumor immunosuppression . It’s noticeable that OT-1 cells transduced with myr-Akt didn’t shown further enhanced effector functions than OT-1 cells transduced with wtAkt, which was also demonstrated in PC3M tumor model. It could be partly explained by the similar phosphorylation levels of Akt observed for T cells transduced with wtAkt and myr-Akt (Fig. 4c), also the increased apoptosis observed for PBLs transduced with myr-Akt cultured alone or in the presence of tumor cells (Fig. 5b). The increased apoptosis observed for PBLs transduced with myr-Akt is inconsistent with previous report that T cells expressing constitutively active Akt up-regulated anti-apoptotic molecules and displayed decreased apoptosis . This difference could be caused by the different experimental system used in their study, in which the apoptosis was evaluated at 4 weeks after retrovirus transduction, whereas our study characterized T cells at 5 days after transduction.
The increased apoptosis observed for myr-Akt transduced T cells is contradictory to the well known pro-survival role of Akt, however, it was reported that Akt regulates Fas-mediated cell death through transcriptional activation of Fas receptor . In addition, it has also been shown that Akt-dependent GSK inhibition regulates activation induced cell death (AICD) of T cells . It’s possible that over-expressing constitutively active Akt increased AICD of T cells, thus dampened the therapeutic efficacy of tumor specific T cells. The fact that tumor specific T cells transduced with wtAkt displayed better effector functions than T cells transduced with myr-Akt actually makes this strategy more convenient for clinical translation. Although it has been reported that T cells expressing constitutively active Akt still require antigen stimulation to grow , transducing constitutively active Akt raises safety concerns for the application of this strategy. Our data supports over-expressing wtAkt to enhance the therapeutic effects of adoptively transferred tumor specific T cells, which serves as a foundation for broader clinical translation.
OT-1 cells transduced with Akt produced IFN-γ and increased the percentage of proliferative cells on exposure to B16-OVA, indicating the specific activation of T cells by tumor. In contrast, PBLs expressing CAR-Akt co-cultured with PC3M displayed decreased proliferation and increased apoptosis comparing to cultured alone, suggesting that PC3M model is more immunosuppressive, and up-regulating Akt is not sufficient to enable T cells to completely resist the suppression. Despite this, PBLs expressing CAR-Akt increased anti-tumor effects both in vitro and in vivo, comparing to PBLs expressing CAR only. It’s worth to mention that the EpCAM specific CAR we used consists of both CD28 and CD3ζ signaling domains, thus the increased cytotoxicity displayed by PBLs co-expressing Akt is probably due to resistance to inhibitory signaling conferred by Akt activation.
The recent report by Crompton et al. found that inhibition of Akt enabled TIL a memory T cell signature with enhanced anti-tumor effect . TILs isolated for adoptive transfer normally undergo extensive expansion process in vitro, and display a terminally-differentiated phenotype with short telomere and diminished anti-tumor activity. In their study, Akt inhibitor was added only in the expansion process, and they found that TILs expanded with Akt inhibition persisted longer and exerted better anti-tumor effects. Comparing to their study, we used OT-1 T cells or PBLs stimulated and expanded in vitro, which displayed a CD62L+ phenotype after the short expansion process (Additional file 2: Figure S2). Akt is necessary to induce and sustain effector functions of T cell [18, 24], comparing to their study trying to enhance the persistence of T cells by inhibition of Akt, we tried to enhance the effector functions of T cells by over-expressing Akt, these two studies take different angles to manipulate T cells to enhance the anti-tumor efficacy, and are not contradictory to each other, and it’s worth further study to determine which means is superior to the other. In addition, in their work, tumor bearing mice were pretreated with total body irradiation, adjuvant vaccine, and IL-2 in conjunction with cell therapy, these preparations could ameliorate tumor immunosuppression and enhance the anti-tumor effects of cell therapy, however, severe adverse effects have been reported. In contrast, we used adoptive cell therapy alone to treat tumor, and over-expressing Akt could enable T cells to resist tumor immunosuppression, which is the major advantage of our strategy.
In summary, our data demonstrates that over-expressing Akt in tumor specific T cells could improve the proliferation, cytokine production, and cytotoxicity of T cells in the presence of tumor. Comparing to strategies designed to counteract various immunosuppressive mechanisms employed by tumor, transducing Akt in T cells provides a new approach for tumor immunotherapy, and has important implications for improving the therapeutic effects of adoptive T cell transfer.
We thank Dr. T.-C. Wu and Dr. Chien-Fu Hung for the kind gift of B16-OVA tumor cell line; Dr. William Sellers for sharing pLNCX-HA-Akt1 and pLNCX-myr-HA-Akt1 plasmids. We thank Tao Xu for assistance with flow cytometry, and Xiao Liang for assistance with luminescence imaging. This work was supported by grants from the Natural Science Foundation of China (81101554), and Chinese Academy of Medical Sciences.
