- Research article
- Open Access
High basal Wnt signaling is further induced by PI3K/mTor inhibition but sensitive to cSRC inhibition in mammary carcinoma cell lines with HER2/3 overexpression
BMC Cancer volume 15, Article number: 545 (2015)
Elevated basal, ligand-independent, Wnt signaling in some canine breast cancer cells is not caused by classical mutations in APC, β-Catenin or GSK3β but, at least partially, by enhanced LEF1 expression. We examined the expression and function of EGFR/HER-regulated pathways on the ligand-independent Wnt signaling.
Twelve canine mammary tumor cell lines with previously reported differential basal Wnt activity were used. The expression levels of genes related to EGF-signaling were analyzed by cluster analysis. Cell lines with a combined overexpression of EGF-related genes and enhanced basal Wnt activity were treated with PI3K/mTor or cSRC inhibitors or transfected with a construct expressing wild-type PTEN. Subsequently, effects were measured on Wnt activity, cell proliferation, gene expression and protein level.
High basal Wnt/LEF1 activity was associated with overexpression of HER2/3, ID1, ID2, RAC1 and HSP90 together with low to absent cMET and PTEN mRNA expression, suggesting a connection between Wnt- and HER-signaling pathways. Inhibition of the HER-regulated PI3K/mTor pathway using the dual PI3K/mTor inhibitor BEZ235 or the mTor inhibitor Everolimus® resulted in reduced cell proliferation. In the cell line with high basal Wnt activity, however, an unexpected further increased Wnt activity was found that could be greatly reduced after inhibition of the HER-regulated cSRC activity. Inhibition of the PI3K/mTor pathway was associated with enhanced expression of β-Catenin, Axin2, MUC1, cMET, EGFR and HER2 and a somewhat increased β-Catenin protein content, whereas cSRC inhibition was associated with slightly enhanced HER3 and SLUG mRNA expression. A high protein expression of HER3 was found only in a cell line with high basal Wnt activity.
High basal Wnt activity in some mammary cancer cell lines is associated with overexpression of HER-receptor related genes and HER3 protein, and the absence of PTEN. Inhibition of the PI3K/mTor pathway further stimulated, however, canonical Wnt signaling, whereas the inhibitory effect with the cSRC inhibitor Src-I1 on the Wnt activity further suggested a connection between Wnt and HER2/3-signaling.
Progesterone-induced Wnt signaling plays an important role in the development of the mammary gland during puberty, but may also induce the development of mammary tumors from stem/progenitor cells . There is a high incidence of active Wnt signaling in basal-like breast cancers . Since this activity cannot always be explained by overexpression of Wnt ligand or mutations in players involved in the destruction complex of β- Catenin alone , this high Wnt signaling must have additional causes. One potential candidate, cytoplasmic β-Catenin, functions as a key signaling intermediate in the canonical Wnt/β-Catenin pathway. Wnt proteins, by binding to membrane receptors on the cell membrane, initiate the signal transduction. The total Wnt group consists of multiple genes that are either canonical (Wnt 1, 3A, 8A, 8B) or non-canonical (Wnt 5A, 4, 11). Wnt can also stimulate alternative effectors in the non-canonical pathway that can antagonize the canonical pathway .
Without a Wnt signal, the β-Catenin destruction complex binds and phosphorylates non-cadherin-associated β-Catenin. This targets it for destruction by the proteasome, thereby allowing TCF family of transcriptional factors to bind to transcriptional repressors in the nucleus. The destruction complex is disrupted when active Wnt signaling is stimulated by binding of Wnt proteins to its Frizzled receptor on the cell membrane. As a result β-Catenin accumulates in the cytoplasm, translocates to the nucleus and associates with TCF family of proteins, enhancing transcriptional activation of a program of genes [3–5].
In the non-canonical Wnt pathway, Wnt can act through ROR and RYK tyrosine kinases, which activate Jun N-terminal kinase (JNK). This increases intercellular Ca2+ leading to activation of nuclear factor activated T cells (NFAT) and consequently inhibition of the canonical signaling. The alternative Wnt receptor RYK additionally signals through Dishevelled to cSRC in axon guidance. Traditionally Wnt ligands do not signal through β-Catenin in the non-canonical pathway, but it seems that Wnt 5A had some inhibitory characteristics on the canonical signaling. Likely there is some crosstalk between the canonical and the non-canonical Wnt pathways .
The major drivers of breast cancer risk are 17ß-estradiol (E2) and progesterone (P4). Synthetic progestins are frequently given as oral anticonception or in hormone replacement therapy (HRT) [6, 7]. Apart from stimulating the expression of Wnt4  P4 decreases the presence of the ß-catenin binding adhesion protein E-cadherin, which may result in higher Wnt/β-Catenin signaling . P4 also affects the non-canonical signaling through the transcriptional activity of activator protein 1(AP1) in the signaling cascade of JNK and MAPK . In the dog, P4 also plays an important role in mammary cancer . This makes dogs a useful model, since they share human environmental risk factors and their mammary tumor biology shows a significant overlap with humans: sequencing canine simple mammary carcinomas revealed comparable genomic aberrations to those in human breast cancer. Further, both humans and dogs apparently share pathways that are altered in carcinogenesis, such as cell adhesion, Wnt signaling and PI3K signaling , making them an attractive model for hormone-dependent breast cancer research [5, 12].
Recently we have shown that three canine mammary tumor cell lines with high basal Wnt/β-Catenin activity do not respond to treatment with the Wnt ligand synthesis inhibitor IWP-2 and therefore use a ligand-independent mechanism to activate the pathway. In 4 other cell lines, moderate basal Wnt reporter activity could be inhibited using IWP-2 showing a clear ligand depend Wnt activity, the remaining cell lines had no basal Wnt activity. We furthermore showed that overexpression of LEF1 is one of the contributing factors of the high Wnt/β-Catenin activity in these cells . In this study we demonstrate that these cells also have lost PTEN expression. PTEN is a tumor suppressor gene and a phosphatase that antagonizes the kinase activity of PI3K. PTEN can also target focal adhesion kinase (FAK), the EGF receptor and itself as a binding partner to increase p53 activity . A properly functioning PTEN thus inhibits PI3K/AKT/mTOR and MAPK signaling.
The epidermal growth factor (EGF) is transactivated by the Wnt pathway, which in addition stimulates the ß-catenin/TCF pathway, making Wnt a potent oncogene in the mammary gland . Binding of EGF or related growth factors to the EGF receptors induces homo- and heterodimers leading to phosphorylation on specific tyrosine residues; these residues serve as docking sites for a variety of signaling molecules, leading to activation of intracellular pathways such as the mitogen-activated protein kinase (MAPK), the phosphatidylinositol-3-kinase (PI3K), Stats, RAS and cSRC pathways. Although not binding any ligand, HER2 plays a central role together with the HER3 protein that lacks proper tyrosine kinase activity, with this complex being the strongest activator for downstream signaling pathways [14, 15]. HER3 can also signal ligand independent and its activation is associated with resistance to HER2 targeting tyrosine kinase inhibitors in breast cancer . The HER3 protein, which has no kinase activity, may signal in the nucleus through several C-terminal transactivation domains . Also in the dog, HER2 is overexpressed in some 35 % of malignant mammary tumors whereas HER3 is found in the nucleus of some 42 % of mammary carcinomas .
We therefore investigated in a panel of canine mammary tumor cell lines for a relationship between the canonical Wnt signaling and HER signaling pathways. As shown recently these cell lines varied in basal Wnt/ß-Catenin signaling from high ligand-independent to moderate ligand-dependent or absent basal .
Canine mammary cell lines and culture
Canine mammary tumor cell lines used in this study were CMT1, CMT-U229, CMT-U335, CMT-U27, CMT9, P114, CHMp, CHMm, CNMp, CNMm, CIPp and CIPm [19–21]. The cell lines were generous gifts of the Prof Dr Hellmen (SLU, Uppsala, Sweden), Prof Dr Sasaki (Laboratory of Veterinary Surgery, University of Tokyo, Japan), and Dr Rutteman (Utrecht University, The Netherlands). All cell lines were cultured in DMEM/F12 (Invitrogen, Bleiswijk, The Netherlands) supplemented with 10 % fetal bovine serum (FBS) (FBS Gold, PAA, Cӧlbe, Germany). Cells were tested to be free from mycoplasma with a Mycosensor QPCR assay according to manufacturer’s protocol (Agilent technologies, Middelburg, The Netherlands).
Cells were seeded in a 24 well plate (Primaria, BD Biosciences, Breda, The Netherlands) at a density of 100,000 CMT1, CMT-U27 and CMT9 cells and 80,000 CIPm cells, to reach an 80 % density 24 h before transfection. Transfection was performed in FBS-free medium using 3 μl Lipofectamine 2000 (Invitrogen), 800 ng pTOPFLASH (TOP) or pFOPFLASH (FOP) (gift from Prof Dr Hans Clevers, Hubrecht Institute, The Netherlands) and 0.5 ng human ß-actin-promoter renilla construct  as an internal control. Transfection was stopped after 5 h by adding the same volume DMEM/F12 supplemented with 20 % FBS. Cells were treated with 100 nM Everolimus (Selleckchem, Munich, Germany), 50 nM BEZ235, (Selleckchem), 20 μM Src-I1 (Enzo, Lausen, Zwitserland), or 1 μM FAK Inhibitor 14, (Santa Cruz, Heidelberg, Germany) for 40 h. All the compounds were dissolved in DMSO and diluted in medium to a final concentration of 0.2 % DMSO. The firefly and renilla luciferase activities were measured using a Dual-Luciferase Assay System (Promega, Leiden, The Netherlands) in a Centro LB 960 luminometer (Berthold Technologies, Vilvoorde, Belgium).
Real time quantitative RT-PCR
From each cell line, total RNA was isolated and treated with DNase using RNeasy mini kit (Qiagen, Venlo, The Netherlands) according to manufacturer’s protocol. Using iScript kit (BioRad, Veenendaal, The Netherlands), cDNA synthesis was performed. Specific primer sets were used to amplify gene products in a qPCR reaction (Table 1). The reactions were performed and measured using a BioRad MyIQ detection system (BioRad) with SYBR green fluorophore. Relative target gene expression was normalized to a set of eight reference genes (tested in Genorm with a pairwise variation (PV) of 0.07) for the transfection experiments. For the cluster analysis, 6 reference genes were used with a PV 0.07 (HNRPH, TBP, SRPR, HMBS, RPS5 and RPS19). A relative induction of gene expression was statistically assessed using paired, 2-tailed student’s T-test. Relative expression was calculated by the delta-delta Ct (ΔΔCt) method .
Cell viability was determined by means of the colorimetric 3-[4,5-dimethylthiazol-2-yl] 2,5-diphenyltetrazolium bromide assay (MTT) (Sigma Aldrich, Zwijndrecht, The Netherlands). Briefly, cells were seeded in 96 wells plates (Primaria, BD Biosciences, Breda, The Netherlands) and after 24 h incubation to attach and stretch, treated with the different compounds for 40 h. Cell viability was determined by incubating 20 μl 5 mg/ml MTT in 100 μl medium in each well. After a 2 h incubation, the media was removed by decanting and 100 μl DMSO was added to each well, incubated for 30 min and the absorbance was measured at 595 nm in a spectrophotometer Anthos Multimode Detector (Anthos Mikrosystem GmbH, Krefeld, Germany). IC50 curves were plotted with Sigma-plot version 12.5.
Protein extraction and Western blot
Cells were seeded in 75 cm2 bottles and after 24 h incubation to attach and stretch, treated with the different compounds. After 40 h cells were washed with cold HANK’s balanced salt solution and lysed and scraped with RIPA buffer . After 20 min incubation on ice, samples were centrifuged for 15 min at 16,000 g and 4 °C. Protein concentration was determined using Bio-Rad Dc Protein Assay (Bio-Rad Laboratories). Twenty micrograms of protein from total cell lysates was subjected to SDS-PAGE and analyzed by Western blot. Primary antibodies used in this study were directed against β-Catenin (Ab6302 1:4000) (Abcam, Cambridge, UK), HER2 (PA5-14635 1:500) (Pierce-Thermo Scientific), HER3 (PA1-86644 1:2500 (Thermo Scientific), with β-Actin pan Ab-5 (MS-1295-P1 1:2000) (Thermo Scientific) as a reference protein. And as secondary antibody, goat anti-mouse HRP-conjugated (HAF007), goat anti-rabbit HRP conjugated (HAF008) and donkey anti-goat HRP conjugated (HAF109) (R&D Systems, Abingdon, UK) was used in a 1:20.000 dilution. HRP was visualized using Advance TM_Enhanced chemiluminescence (ECL, Amersham, GE Healthcare, Eindhoven, The Netherlands) and analyzed using GelDoc 2000 (Bio Rad). With the Quantity One software, version 4.6.9 (BioRad), densities were measured, corrected for the background and related to β-Actin expression as loading control.
Cluster analysis with qPCR results from all the cell lines was done in RStudio (version 3 software (R Core Team (2013) R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria; http://www.R-project.org)) with a Pearson:Spearman test (genes: Pearson; samples: Spearman average) to find a correlation between the TOP/FOP ratio, related target genes and the cell lines.
Transfection and incubation studies, and also the MTT assays, were done in three independent experiments (n = 8 for MTT and n = 4 for each transfected/incubation compound). After background subtraction, the cell viability, the Wnt-signaling and the protein levels were calculated as a percentage of the non-treated cells. IC50 curves were done in a single experiment with n = 8 and the HER3 Western blots were done in triplicate. Differences in TOP/FOP activities, RNA, cell viability and protein expression levels were statistically assessed using unpaired, two tailed Student’s t test, a P value less than 0.01 was considered significant.
Results and discussion

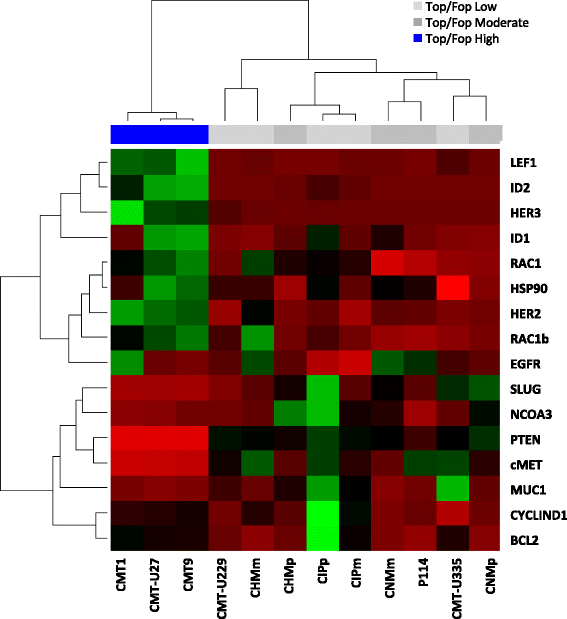

Wnt activity and gene clustering
In a continuation of our previous findings of a variation in basal Wnt/β-Catenin activity in canine mammary tumor cell lines  we searched for the mRNA expression of members of the EGF receptor family of proteins and the associated signal-transduction pathways. In the present paper, the three cell lines with high ligand-independent basal Wnt activity (CMT1, CMT-U27 and CMT9) were, through cluster analysis of the gene expression data, shown as a clear grouping, but no clear association for absent or low Wnt-ligand induced basal Wnt/β-Catenin activity in the other cell lines (Fig. 1). High basal Wnt activity is clearly grouped together with an up-regulated expression of LEF1, ID1, ID2, EGFR (only in CMT1), HER2/3, HSP90 and RAC1 mRNA and a down regulation of SLUG, NCOA3, MUC1, CYCLIN D1, BCL2, cMET and PTEN mRNA. In these highly activated Wnt cell lines, PTEN expression is completely lost. PTEN deficiency occurs in 5 to 14 % of primary human breast cancers and PTEN is also lost in human T47D and MCF7 cell lines . The cluster analysis confirmed our previous finding that in the cell lines with active Wnt signaling, LEF1 is overexpressed and acts as a contributing factor of the high canonical Wnt pathway . New is our finding of a strong association of the expression of the EGF pathway both at the receptor level (HER expression) as in the silencing of PTEN with high ligand independent Wnt signaling. Previously, it has been shown that binding of Wnt proteins to the Frizzled receptor may activate the EGFR. EGFR can be further activated by homo or hetero-dimerization with HER2, HSP90 as its chaperone, or HER3. These activated complexes functions as an oncogenic unit to drive the proliferation of breast cancer cells [14, 24]. In human and mouse mammary glands, the activated Wnt/β-Catenin is related to enhanced HER2 expression , something also found in 30 % of canine malignant mammary tumors . Combining the up regulation of both HER2 and HER3 in our canine mammary cell lines and the fact that the HER2/HER3 complex is the strongest activator for downstream signaling pathways makes this an interesting area for further research [15, 27, 28].
We concluded that the association between high Wnt signaling (high TOP/FOP ratios), high LEF1 levels, loss of PTEN and high HER2/3 mRNA levels all point to the activation of the PI3K/AKT/mTor pathway [29–32]. We therefore investigated the effects of PI3K/mTor inhibitors on cell viability, Wnt signaling, expression levels of the differently expressed genes from the clustering analysis and the cellular content of β-Catenin, and HER2/3 protein as an experimental model for HER2+/PTEN- breast cancer.
PI3K/mTor inhibition decreases cell viability but stimulates Wnt activity
Cell lines with high Wnt activity and a cell line lacking basal Wnt activity (CIPm) were incubated with Everolimus as a specific mTor inhibitor and BEZ235 as a dual inhibitor of PI3K and mTOR. Both BEZ235 and Everolimus equally inhibited the viability of the highly activated Wnt cell lines and have only a slightly inhibitory effect on the CIPm cells (Fig. 2).
This inhibitory effect on viability was clearly dose-dependent and present in both the high basal Wnt cell line CMT-U27 and the CIPm cell line (Fig. 3 and Table 2). Comparable concentrations of BEZ235 were also used in human studies with different cell lines [33, 34]. In human MCF7 cells, Everolimus (Rad001) was tested in a range from 0-1000 nM and only the 1000 nM concentration showed a 50 % reduction in cell number . Incubation of these cells with BEZ235 and Everolimus resulted in unexpected further significant enhancement of Wnt activity of CMT1, CMT-U27 and CMT9, with a more than 2-fold increase in the TOP/FOP ratios (Fig. 4).
BEZ235-induced inhibitions of cell proliferation have been reported previously in MCF-7/shPTEN cells and in 21 other tested human cancer cell lines . The only difference is that in these cell lines, BEZ235 had a stronger effect than Everolimus on cell proliferation . In human breast cancer, loss of PTEN is associated with activation of the PI3K/AKT Pathway , which may result in increased nuclear stabilization of β-Catenin in mammary stem cells using human breast tissue xenografts . This is in contrast to the absence of any inhibitory effect in the TOPFlash reporter assays of several breast and prostate cancer cell lines treated with another inhibitor of the PI3K pathway (Wortmannin) and suggests that the PI3K pathway has no relation with Wnt-mediated transcriptional activity . In our cell lines as well, neither Wortmannin nor the introduction of a PTEN-expressing plasmid inhibited Wnt signaling, indicating that PI3K inhibition alone does not influence the active Wnt signaling and that mTor inhibition is needed (data not shown). CIPm, which lacks basal Wnt activity, did not respond to both inhibitors with increased reporter activity.
We conclude that inhibition of PI3K and/or mTor in the highly activated Wnt cell lines inhibits cell viability, but further stimulates Wnt activity. Because the mechanism behind this remained unclear, we tested the effect of these inhibitors on the expression of genes from the cluster analysis.
PI3K/mTor inhibitors stimulate β-Catenin, Axin2, MUC1, cMET, EGFR and HER2 expression in the activated Wnt cell lines
Inhibition of the PI3K/mTor pathway with BEZ235 (a dual PI3K mTor inhibitor) or with Everolimus (a single mTor inhibitor) in cell lines with high ligand-independent canonical Wnt activity resulted in comparable upregulation of a number of candidate genes (Fig. 5). A moderate twofold increase was detected in the expression of β-Catenin, Axin2, HER2 and cMet mRNA. Only the expression of EGFR and MUC1 mRNA was higher, especially in the CMT-U27 and CMT9 cell lines. β-Catenin and Axin2 are markers for an activated Wnt/β-Catenin signaling in mammary tissues . Protein levels of β-Catenin were not significantly different after treatment with both inhibitors (Fig. 6). The stable total protein expression of β-Catenin may reflect predominantly binding to E-cadherin, which is comparable high in both cell lines [5, 7] and may not be related to the cytoplasmic or nuclear ß-Catenin content. No significant effect of both inhibitors was seen on HER2/3 protein content although HER3 expression was only found in the cell line with high basal Wnt activity (Fig. 6). Apart from the expression of HER2 at the cell surface it can also form a complex with AP-1/Stat3/PR in the nucleus. This nuclear HER2 can act as a transcription factor and modulate genes involved in breast cancer proliferation . In contrast with the absence of HER3 in the CIPm cell line, the CMT-U27 cells have a HER3 band visible at 180kD, which correspond to a glycosylated form. This glycosylated HER3 protein is also found in human MDA-MB-445 and MDA-MB-453 cells . In MDA-MB-453 and other mammary tumor cell lines, there is strong evidence for the role of HER3 in cancer. HER3 plays a role in EMT and activated HER3 can also increase the expression of the cMET proto-oncogene independently from EGFR and HER2 , which may be in line with the 2-3 fold increased expression shown in Fig. 5. EGFR and HER2 expressions are upregulated after treatment with BEZ235 in a human breast cancer cell line with a lack of PTEN (MDA-MB-468). In contrast with this BCL2 is not upregulated in all tested canine cell lines and HER3 is only, although significantly, 1.5 times upregulated in some cases . The most prominent change was the 7-fold increase in MUC1 expression. At the same time, in all tested cell lines, basal MUC1 protein concentrations showed no difference, even in the presence of considerable amounts of the cytoplasmic domain MUC1-CD (data not shown). Still, overexpression of MUC1 plays a role in tumor formation and progression in > 90 % of the breast cancers . It has been reported that the Wnt activity is directly affected through the binding of the Wnt effector β-Catenin on MUC1-CD  through binding of several proteins, including cMET, cSRC and EGFR/HER. Consistent with this is the enhanced EGFR and oncoprotein MUC1 mRNA concentrations in our experiment together with the upregulation of cMET. Enhanced cMET expression has been linked to poor prognosis in human breast cancer, since it influences extravasation/angiogenesis, enhances resistance to endocrine therapy and trastuzumab treatment and may influence the regulation of β-Catenin/TCF transcription [29, 43]. The basal expression of cMET in the cell lines with elevated Wnt activity is low, but stimulated when the PI3K/mTOR pathway is blocked; blocking this pathway also affects the EGFR and HER2 expression. Overexpression of MUC1 is associated with the induction of anchorage-independent growth and tumorigenicity in human carcinomas. MUC1 overexpression is also directly associated with stabilization of β-Catenin either via MUC1 binding to E-Cadherin, or by inhibition of the adenomatous polyposis coli (APC)/GSK3β/ MUC1-CD complex, whereas phosphorylation of MUC1-CD by EGFR and cSRC increases β-Catenin [42, 44–46].
Leaving aside the question of how EGFR/HER2/HER3 signaling is involved in high basal Wnt activity, it is clear that the upregulation of the MUC1 and EGFR/HER2 expression have a relationship with the increased Wnt activity that occurs after inhibition of the PI3K/mTor pathway. The presence of glycosylated HER3 protein in the highly activated Wnt cell line is new, and because our results suggest that activation of cSRC could play a role [15, 46], we next studied the influence of cSRC inhibitors on the Wnt activity and HER3 levels.
Active Wnt signaling significantly inhibited by the cSRC inhibitor Src-I1
Activation of EGFR initiates the activation of PI3K/AKT/mTor and MAPK as well as various other signaling pathways, including the PLC-Υ1, JAK/STAT, and cSRC pathway [15, 47]. Because the EGFR can form a complex with cSRC, FAK (focal adhesion kinase), integrins and β-Catenin resulting in growth, viability, survival and migration , we tested the effect of the cSRC inhibitor 1 (Src-I1) and a FAK inhibitor [48, 49]. Treatment with the FAK inhibitor resulted in a small non-significant decreases in the TOP/FOP ratio with no effect on cell proliferation (data not shown), however Src-I1 had a clear effect on cell viability and was found to be an inhibitor of the Wnt activity via inhibition of cSRC signaling [50, 51]. The same inhibition on the Wnt pathway was found in the human cell lines NIH 3 T3 with the cSRC inhibitor PP1 . The used concentration of Src-I1 reduced cell proliferation for some 20 % and acted as a weaker inhibitor in comparison with BEZ235 and Everolimus (Fig. 2). Unlike BEZ235 and Everolimus, the cSRC inhibitor Src-I1 reduced the Wnt/β-Catenin signaling by almost half in canine mammary tumor cell lines with high canonical Wnt activity, but not in the CIPm cells that lack basal Wnt activity (Fig. 4). Inhibiting mouse cells with cSRC inhibitors PP2 and Genistein gave comparable results on LEF/TCF sensitive transcription and on the level of activated phosphorylated cSRC. This indicates that cSRC is a positive regulator of the Wnt/β-Catenin signaling . To investigate the Wnt-regulation by both the PI3K pathway and the cSRC pathway, we tested the same target genes used in the clustering analyses (Fig. 1).
Effects of cSRC inhibition on gene and protein expression
The cSRC inhibitor Src-l1 decreased the cell viability (Fig. 2), decreased Wnt signaling (Fig. 4) without affecting MUC1, EGFR and HER2/HER2 expression levels (Figs. 5 and 6). The inhibition of Wnt activity as measured by a decrease in TOP/FOP ratios was also clearly dose-dependent (data not shown) in the activated Wnt cells. Marginal increases were found in SLUG and HER3 mRNA concentrations (Fig. 5c) after cSRC inhibition. Remarkably inhibition with Src-I1 showed a significant decrease in HER3 protein concentrations whereas the HER3 mRNA expression was slightly elevated indicating that cSRC inhibition is associated with a higher turnover or a decreased glycosylation of HER3 at the protein level. At the moment information on the regulation of HER3 expression is scarce. Several microRNAs regulate the expression levels and also epigenetic effects have been shown to influence HER3 expression in breast cancer cells .
We see an association between the Wnt pathway and the EGFR/HER2/HER3 stimulated cSRC (motility) route. The role of MUC1 is less clear and needs further research. In mice, however, data are available showing that MUC1 activates cSRC signaling by influencing the association of PI3K and β-Catenin leading to a delay in mammary tumor progression . Prior research indicates that activation of the PI3K/mTor pathway may be related to resistance to hormonal therapies. Administration of the mTor inhibitor Everolimus has therefore been studied extensively in women with HR+, HER2+ or TNBC breast cancer. Reports on various studies, i.e. BOLERO (Breast Cancer Trials of Oral Everolimus), TAMRAD and EFECT, have shown an increased progression free survival (PFS) when Everolimus was combined with aromatase inhibitors . If the effects shown in this paper on the in vitro inhibition of cell viability but increased Wnt signaling are also present in a subset of breast cancer patients then treatment with Everolimus could have an adverse effect on Wnt regulated aspects such as stemness and metastasis.
cSRC may play a crucial role in tumor growth and metastasis. Metastasis involves loss of cellular adhesion, increased motility, intravasation, invasion, extravasation, resistance to anoikis, and colonization at distant sites. High cSRC expression is found in various breast cancers in association with reduced survival. Recently the cSRC inhibitors Dasatinib and Bosutinib were studied as a monotherapy in humans, but showed no clear reduction of antitumor activity, indicating that before further studies are done, clear biomarkers should be found for proper patient selection . The search for these biomarkers is being aided by research on dogs with spontaneous mammary carcinomas. For example, the successful treatment with Dasatinib of a dog with osteosarcoma, reported in a recent case study, shows that the dog is an interesting animal for further clinical studies using cSRC inhibitors in HER2+/PTEN- tumors [26, 55, 56]. Binding of cSRC to HER2 is crucial for the formation of HER2:HER3 heterodimers. Both phosphorylated and total levels of cSRC are upregulated in anti-estrogen resistant T47D cell lines that show growth reduction by cSRC inhibitors. EGFR homodimers also play an important role in growth. The individual contributions of EGFR, HER2 and HER3 in Wnt pathway activation require further study. Our results on highly activated Wnt signaling cells require further research into the role of HER3, cSRC, and Wnt on tumor growth and metastasis .
In summary, inhibition of the PI3K/mTor pathway in tumor cell lines with ligand-independent Wnt activity further increases canonical Wnt signaling. As we have shown, this Wnt activity can be effectively inhibited by a cSRC inhibitor. While very recently, loss of PTEN has been associated with worse outcomes in HER2 positive breast cancer patients, no data are available on their Wnt activity . Although a number of human breast cancer cell lines have active ß-catenin signaling (summarized in ), this relation between HER2/3 expression and PTEN loss appears not to have been previously documented.
Further studies will need to identify optimal biomarkers for selecting breast cancer patients most likely to benefit from concerted treatment with combination therapies of mTor and cSRC inhibitors. Such research is very likely to include studies in dogs with spontaneous mammary carcinomas.
Activator protein 1
Adenomatous polyposis coli
Rous sarcoma proto-oncogene
Epidermal growth factor
Focal adhesion kinase
Glycogen synthase kinase 3 beta
Human epidermal growth factor receptor 2/3; ERBB2/3
Heat shock protein 90
Inhibitor of DNA binding 1/2
Jun N-terminal kinase
Lymphoid enhancer-binding factor 1
Mitogen-activated protein kinase
Mammalian target of rapamycin
Nuclear factor of activated T-cells
Phosphatase and tensin homolog
T-cell-specific transcription factor
Wingless-type MMTV integration site family
Lindvall C, Bu W, Williams BO, Li Y. Wnt signaling, stem cells, and the cellular origin of breast cancer. Stem Cell Rev. 2007;3(2):157–68.
Khramtsov AI, Khramtsova GF, Tretiakova M, Huo D, Olopade OI, Goss KH. Wnt/beta-catenin pathway activation is enriched in basal-like breast cancers and predicts poor outcome. Am J Pathol. 2010;176(6):2911–20.
Incassati A, Chandramouli A, Eelkema R, Cowin P. Key signaling nodes in mammary gland development and cancer: beta-catenin. Breast Cancer Res. 2010;12(6):213.
McNeill H, Woodgett JR. When pathways collide: collaboration and connivance among signalling proteins in development. Nat Rev Mol Cell Biol. 2010;11(6):404–13.
Gracanin A, Timmermans-Sprang EP, van Wolferen ME, Rao NA, Grizelj J, Vince S, et al. Ligand-Independent Canonical Wnt Activity in Canine Mammary Tumor Cell Lines Associated with Aberrant LEF1 Expression. PLoS One. 2014;9(6):e98698.
Hilton HN, Graham JD, Kantimm S, Santucci N, Cloosterman D, Huschtscha LI, et al. Progesterone and estrogen receptors segregate into different cell subpopulations in the normal human breast. Mol Cell Endocrinol. 2012;361(1-2):191–201.
Restucci B, Maiolino P, Martano M, Esposito G, De Filippis D, Borzacchiello G, et al. Expression of beta-catenin, E-cadherin and APC in canine mammary tumors. Anticancer Res. 2007;27(5A):3083–9.
Kariagina A, Xie J, Langohr IM, Opreanu RC, Basson MD, Haslam SZ. Progesterone decreases levels of the adhesion protein E-cadherin and promotes invasiveness of steroid receptor positive breast cancers. Horm Cancer. 2013;4(6):371–80.
Diaz Flaque MC, Galigniana NM, Beguelin W, Vicario R, Proietti CJ, Russo RC, et al. Progesterone receptor assembly of a transcriptional complex along with activator protein 1, signal transducer and activator of transcription 3 and ErbB-2 governs breast cancer growth and predicts response to endocrine therapy. Breast Cancer Res. 2013;15(6):R118.
Misdorp W. Canine mammary tumours: protective effect of late ovariectomy and stimulating effect of progestins. Vet Q. 1988;10(1):26–33.
Liu D, Xiong H, Ellis AE, Northrup NC, Rodriguez Jr CO, O'Regan RM, et al. Molecular homology and difference between spontaneous canine mammary cancer and human breast cancer. Cancer Res. 2014;74(18):5045–56.
Uva P, Aurisicchio L, Watters J, Loboda A, Kulkarni A, Castle J, et al. Comparative expression pathway analysis of human and canine mammary tumors. BMC Genomics. 2009;10:135.
Miller TW, Perez-Torres M, Narasanna A, Guix M, Stal O, Perez-Tenorio G, et al. Loss of Phosphatase and Tensin homologue deleted on chromosome 10 engages ErbB3 and insulin-like growth factor-I receptor signaling to promote antiestrogen resistance in breast cancer. Cancer Res. 2009;69(10):4192–201.
Holbro T, Civenni G, Hynes NE. The ErbB receptors and their role in cancer progression. Exp Cell Res. 2003;284(1):99–110.
Wang Z. Mutual Regulation of Receptor-Mediated Cell Signalling and Endocytosis: EGF Receptor System as an Example. In: Ceresa B, editor. Molecular regulation of endocytosis. Rijeka: In Tech; 2012. p. 302–30.
Mujoo K, Choi BK, Huang Z, Zhang N, An Z. Regulation of ERBB3/HER3 signaling in cancer. Oncotarget. 2014;5(21):10222–36.
Brand TM, Iida M, Luthar N, Wleklinski MJ, Starr MM, Wheeler DL. Mapping C-terminal transactivation domains of the nuclear HER family receptor tyrosine kinase HER3. PLoS One. 2013;8(8):e71518.
Kim JH, Im KS, Kim NH, Yhee JY, Nho WG, Sur JH. Expression of HER-2 and nuclear localization of HER-3 protein in canine mammary tumors: histopathological and immunohistochemical study. Vet J. 2011;189(3):318–22.
Hellmen E, Moller M, Blankenstein MA, Andersson L, Westermark B. Expression of different phenotypes in cell lines from canine mammary spindle-cell tumours and osteosarcomas indicating a pluripotent mammary stem cell origin. Breast Cancer Res Treat. 2000;61(3):197–210.
Uyama R, Nakagawa T, Hong SH, Mochizuki M, Nishimura R, Sasaki N. Establishment of four pairs of canine mammary tumour cell lines derived from primary and metastatic origin and their E-cadherin expression. Vet Comp Oncol. 2006;4(2):104–13.
Van Leeuwen IS, Hellmen E, Cornelisse CJ, Van den Burgh B, Rutteman GR. P53 mutations in mammary tumor cell lines and corresponding tumor tissues in the dog. Anticancer Res. 1996;16(6B):3737–44.
Doleschall M, Mayer B, Cervenak J, Cervenak L, Kacskovics I. Cloning, expression and characterization of the bovine p65 subunit of NFkappaB. Dev Comp Immunol. 2007;31(9):945–61.
Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods. 2001;25(4):402–8.
Citri A, Yarden Y. EGF-ERBB signalling: towards the systems level. Nat Rev Mol Cell Biol. 2006;7(7):505–16.
Khalil S, Tan GA, Giri DD, Zhou XK, Howe LR. Activation status of Wnt/ss-catenin signaling in normal and neoplastic breast tissues: relationship to HER2/neu expression in human and mouse. PLoS One. 2012;7(3):e33421.
Hsu WL, Huang HM, Liao JW, Wong ML, Chang SC. Increased survival in dogs with malignant mammary tumours overexpressing HER-2 protein and detection of a silent single nucleotide polymorphism in the canine HER-2 gene. Vet J. 2009;180(1):116–23.
Holbro T, Hynes NE. ErbB receptors: directing key signaling networks throughout life. Annu Rev Pharmacol Toxicol. 2004;44:195–217.
Kanthala S, Banappagari S, Gokhale A, Liu YY, Xin G, Zhao Y, Jois S: Novel Peptidomimetics for Inhibition of HER2:HER3 Heterodimerization in HER2-Positive Breast Cancer. Chem Biol Drug Des. 2015;85(6):702–14
Previdi S, Maroni P, Matteucci E, Broggini M, Bendinelli P, Desiderio MA. Interaction between human-breast cancer metastasis and bone microenvironment through activated hepatocyte growth factor/Met and beta-catenin/Wnt pathways. Eur J Cancer. 2010;46(9):1679–91.
Ng SS, Mahmoudi T, Danenberg E, Bejaoui I, de Lau W, Korswagen HC, et al. Phosphatidylinositol 3-kinase signaling does not activate the wnt cascade. J Biol Chem. 2009;284(51):35308–13.
Chong CR, Janne PA. The quest to overcome resistance to EGFR-targeted therapies in cancer. Nat Med. 2013;19(11):1389–400.
van Nes JG, de Kruijf EM, Putter H, Faratian D, Munro A, Campbell F, et al. Co-expression of SNAIL and TWIST determines prognosis in estrogen receptor-positive early breast cancer patients. Breast Cancer Res Treat. 2012;133(1):49–59.
Kong D, Dan S, Yamazaki K, Yamori T. Inhibition profiles of phosphatidylinositol 3-kinase inhibitors against PI3K superfamily and human cancer cell line panel JFCR39. Eur J Cancer. 2010;46(6):1111–21.
Brunner-Kubath C, Shabbir W, Saferding V, Wagner R, Singer CF, Valent P, et al. The PI3 kinase/mTOR blocker NVP-BEZ235 overrides resistance against irreversible ErbB inhibitors in breast cancer cells. Breast Cancer Res Treat. 2011;129(2):387–400.
Jordan NJ, Dutkowski CM, Barrow D, Mottram HJ, Hutcheson IR, Nicholson RI, et al. Impact of dual mTORC1/2 mTOR kinase inhibitor AZD8055 on acquired endocrine resistance in breast cancer in vitro. Breast Cancer Res. 2014;16(1):R12.
Serra V, Markman B, Scaltriti M, Eichhorn PJ, Valero V, Guzman M, et al. NVP-BEZ235, a dual PI3K/mTOR inhibitor, prevents PI3K signaling and inhibits the growth of cancer cells with activating PI3K mutations. Cancer Res. 2008;68(19):8022–30.
Korkaya H, Paulson A, Charafe-Jauffret E, Ginestier C, Brown M, Dutcher J, et al. Regulation of mammary stem/progenitor cells by PTEN/Akt/beta-catenin signaling. PLoS Biol. 2009;7(6):e1000121.
Howe LR, Brown AM. Wnt signaling and breast cancer. Cancer Biol Ther. 2004;3(1):36–41.
Kraus MH, Issing W, Miki T, Popescu NC, Aaronson SA. Isolation and characterization of ERBB3, a third member of the ERBB/epidermal growth factor receptor family: evidence for overexpression in a subset of human mammary tumors. Proc Natl Acad Sci U S A. 1989;86(23):9193–7.
Muranen T, Selfors LM, Worster DT, Iwanicki MP, Song L, Morales FC, et al. Inhibition of PI3K/mTOR leads to adaptive resistance in matrix-attached cancer cells. Cancer Cell. 2012;21(2):227–39.
Hattrup CL, Gendler SJ. MUC1 alters oncogenic events and transcription in human breast cancer cells. Breast Cancer Res. 2006;8(4):R37.
Kufe DW. Mucins in cancer: function, prognosis and therapy. Nat Rev Cancer. 2009;9(12):874–85.
Raghav KP, Wang W, Liu S, Chavez-MacGregor M, Meng X, Hortobagyi GN, et al. cMET and phospho-cMET protein levels in breast cancers and survival outcomes. Clin Cancer Res. 2012;18(8):2269–77.
Raina D, Kosugi M, Ahmad R, Panchamoorthy G, Rajabi H, Alam M, et al. Dependence on the MUC1-C oncoprotein in non-small cell lung cancer cells. Mol Cancer Ther. 2011;10(5):806–16.
Huang L, Chen D, Liu D, Yin L, Kharbanda S, Kufe D. MUC1 oncoprotein blocks glycogen synthase kinase 3beta-mediated phosphorylation and degradation of beta-catenin. Cancer Res. 2005;65(22):10413–22.
Al Masri A, Gendler SJ. Muc1 affects c-Src signaling in PyV MT-induced mammary tumorigenesis. Oncogene. 2005;24(38):5799–808.
Ebi H, Costa C, Faber AC, Nishtala M, Kotani H, Juric D, et al. PI3K regulates MEK/ERK signaling in breast cancer via the Rac-GEF, P-Rex1. Proc Natl Acad Sci U S A. 2013;110(52):21124–9.
Sendur MA, Zengin N, Aksoy S, Altundag K. Everolimus: a new hope for patients with breast cancer. Curr Med Res Opin. 2014;30(1):75–87.
Bain J, Plater L, Elliott M, Shpiro N, Hastie CJ, McLauchlan H, et al. The selectivity of protein kinase inhibitors: a further update. Biochem J. 2007;408(3):297–315.
Yokoyama N, Malbon CC. Dishevelled-2 docks and activates Src in a Wnt-dependent manner. J Cell Sci. 2009;122(Pt 24):4439–51.
Cabrita MA, Jones LM, Quizi JL, Sabourin LA, McKay BC, Addison CL. Focal adhesion kinase inhibitors are potent anti-angiogenic agents. Mol Oncol. 2011;5(6):517–26.
Karni R, Gus Y, Dor Y, Meyuhas O, Levitzki A. Active Src elevates the expression of beta-catenin by enhancement of cap-dependent translation. Mol Cell Biol. 2005;25(12):5031–9.
Johnston SR. BOLERO-2 - will this change practice in advanced breast cancer? Breast Cancer Res. 2012;14(3):311.
Elsberger B: Translational evidence on the role of Src kinase and activated Src kinase in invasive breast cancer. Crit Rev Oncol Hematol 2013.
Polyak K, Metzger Filho O. SnapShot: breast cancer. Cancer Cell. 2012;22(4):562–2. e1.
Davis LE, Hofmann NE, Li G, Huang ET, Loriaux MM, Bracha S, et al. A case study of personalized therapy for osteosarcoma. Pediatr Blood Cancer. 2013;60(8):1313–9.
Kirkegaard T, Hansen SK, Larsen SL, Reiter BE, Sorensen BS, Lykkesfeldt AE. T47D breast cancer cells switch from ER/HER to HER/c-Src signaling upon acquiring resistance to the antiestrogen fulvestrant. Cancer Lett. 2014;344(1):90–100.
Stern HM, Gardner H, Burzykowski T, Elatre W, O'Brien C, Lackner MR, et al. PTEN Loss Is Associated with Worse Outcome in HER2-Amplified Breast Cancer Patients but Is Not Associated with Trastuzumab Resistance. Clin Cancer Res. 2015;21(9):2065–74.
We greatly acknowledge Hans Clevers, Hubrecht Laboratory, Utrecht The Netherlands for the supply with TOP- and FOP-Flash reporter constructs. Andrew Aplin, Thomas Jefferson University, Philadelphia USA for the gift of the PTEN expression plasmid. Frank Riemers for the clustering analysis, Monique van Wolferen for several qPCR data and Ms Linda McPhee (write-research.com) for language advice. This work was supported by the Mozaiek Grant 017.004.081 (to A.G.) from the Dutch Society for Scientific Research (NWO).
The authors declare that they have no competing interests.
EPMTS, AG and JAM conceived and designed the experiments. EPMTS and AG performed the experiments and analyzed the data. EPMTS and JAM wrote the paper. All authors read and approved the final manuscript.
About this article
Cite this article
Timmermans-Sprang, E.P.M., Gracanin, A. & Mol, J.A. High basal Wnt signaling is further induced by PI3K/mTor inhibition but sensitive to cSRC inhibition in mammary carcinoma cell lines with HER2/3 overexpression. BMC Cancer 15, 545 (2015). https://doi.org/10.1186/s12885-015-1544-y
- Wnt signaling
- Mammary cancer
