Genetic and treatment profiles of patients with concurrent Epidermal Growth Factor Receptor (EGFR) and Anaplastic Lymphoma Kinase (ALK) mutations

Abstract

Background

EGFR and ALK alternations often contribute to human malignancies, including lung cancer. EGFR and ALK mutations are usually sensitive to EGFR-tyrosine kinase inhibitors (TKIs) and ALK-TKIs. Although generally mutually exclusive, these mutations do co-exist in rare cases. This study investigated the frequencies, clinical characteristics, therapeutic efficacies, and genetic profiles of lung cancer patients with EGFR and ALK co-mutations.

Methods

Patients with concurrent EGFR and ALK mutations were included in this study, which analyzed mutation profiles and treatment histories. SPSS20.0 were used for survival analysis.

Results

Among 271 ALK-positive (ALK-pos) and 2975 EGFR-positive (EGFR-pos) patients in our database, nine (2.6% of ALK-pos and 0.2% of EGFR-pos) patients had concurrent EGFR and ALK mutations (including three exon19 Indel + EML4-ALK, two exon19 Indel + STRN-ALK, two L858R + L1152R, one L858R + EML4-ALK, and one G719C + S768I + STRN-ALK). Eight patients had at least one type of EGFR-TKIs treatment. The median progression free survival (PFS) of these patients on first-generation EGFR-TKIs was 14.5 months (95% CI: 11 - NR). Of these eight patients, one who progressed on Gefitinib and subsequently on Osimertinib had a T790M + C797G. The other seven EGFR-TKIs resistance patients had no known resistance mutations. No patients had ALK mutations before treatment, so ALK mutations may have developed as resistance mechanisms during EGFR-TKIs therapies. EGFR-TKIs-treated patients with EGFR/ALK L1152R mutations generally had a shorter PFS than patients with other mutation combinations.

Conclusions

ALK and EGFR mutations coincide at a relatively low frequency in lung cancer patients. ALK mutations developed either synchronously or heterochronously with EGFR mutations. Two ALK mutations (L1152R and STRN-ALK) may co-exist with EGFR mutations at a higher frequency than others. Most EGFR/ALK co-alteration patients (other than the EGFR/ALK L1152R type) can benefit from first line EGFR-TKIs.

Peer Review reports

Background

Lung cancer has a high morbidity and mortality worldwide [1]. Historically, chemotherapy and radiotherapy are the main treatments for patients with metastatic lung cancer, and the five-year survival rate remains low (< 15%) [2]. However, with the discovery of driving genes, targeted therapy has significantly improved the prognosis of non-small cell lung cancer (NSCLC) [3,4,5].

EGFR mutations and ALK rearrangements are the two most important driving genes for NSCLC. Of these, EGFR mutations are the most common operable driver mutations found in NSCLC patients, occurring in approximately 10% of white patients, and up to 50% of Asian patients [6,7,8]. In a series of studies, patients with EGFR mutations accepted EGFR-TKIs, and the progression-free survival (PFS) was superior to chemotherapy [9]. The occurrence of an ALK rearrangement is 3 to 5% of patients with NSCLC. They often have unique clinical and pathological characteristics including a younger age, no history of heavy smoking, and adenocarcinoma [10,11,12,13]. ALK kinase inhibitors are effective therapies with in vitro and in vivo models, as well as with NSCLC patients with ALK rearrangements [5, 10, 14]. Mutations in driving oncogenes are mostly independent (mutually exclusive), overlapping in only 3 to 5% of the cases [15]. However, with the application of Next-generation sequencing, more low-frequency mutations, as well as concurrent mutations can be detected.

Because of the rarity of concurrent mutation, there is limited knowledge of their prognostic and predictive value. Takaaki et al. suggested that new alterations in ALK or EGFR may result from drug resistance mechanisms against EGFR or ALK tyrosine kinase inhibitors (TKIs) [16].

In our study, we measured the frequency of EGFR and ALK concurrent mutations associated with lung cancer, and studied the responses to TKI treatment in this rare patient population.

Methods

Patients

We screened for concurrent EGFR and ALK mutation status in a multi-center retrospective analysis of 5755 patients with lung cancer from January, 2017 to September, 2018. Among them were 2975 EGFR-positive, and 271 ALK-positive patients. Those with actionable mutations in both ALK and EGFR (detected either simultaneously or subsequently) were included our research cohort. The clinicopathological characteristics, treatment histories, treatment outcomes, and survival information of these patients were collected. Mutations of ALK and EGFR filtered with the annotated oncoKB levels of evidence. This study was approved by the Ethics Committee of the Peking University Cancer Hospital in Beijing, China. All other centers concurred, and all patients providing tissue or other medical data gave written informed consent in accordance with the Helsinki Declaration.

Next generation sequencing (NGS)

All tissues samples had at least 20% tumor cell content and histologic classification were confirmed by pathologist. Nucleic acid sequencing was performed on Illumina Nextseq CN 500 or Gene+Seq 2000 in Geneplus-Beijing which certified by College of American Pathologists [17, 18]. Genomic tumor DNA was extracted from formalin-fixed paraffin-embedded tumor tissues, plasma and white blood cell using QIAamp DNA mini kit (Qiagen, Valencia, CA), QIAamp Circulating Nucleic Acid Kit (Qiagen) and DNeasy Blood Kit (Qiagen), respectively. And sequencing libraries were prepared using the KAPA DNA Library Preparation Kit (Kapa Biosystems, Wilmington, MA, USA), and Illumina TruSeq DNA Library Preparation Kits (Illumina, San Diego, CA). Targeting sequencing region including ~ 1.4 Mbp of 1021 cancer-related genes as well as ~ 230 Kbp of 59 genes (Supplementary Table 1). Gene+Seq2000 was approved by the National Medical Products Administration (NMPA) in August 26, 2019. It is used for clinical DNA sequencing of human samples to detect sequences which may lead to disease or susceptibility. Gene+Seq2000 utilizes a state-of-the-art core technology called DNBSEQ. It has the same mechanism as MGI sequencing platforms, which has a comparable performance to Illumina NovaSeq 6000 [19]. Gene+Seq2000 has high accuracy with 99.69% on human genomic sequencing. The sensitivity and specificity of Gene+Seq2000 were 100% in 269 lung cancer patients who had known driver mutations on EGFR/KRAS/ALK. It has also demonstrated good performance on clinical practice and research [20,21,22].

Nextseq CN500 was approved by National Medical Products Administration (NMPA) in November 7, 2019. It is a high throughput sequencing instrument developed with Illumina based on sequence by synthesis (SBS) technology. It is used for human DNA sequencing to detect gene sequences which may lead to disease or susceptibility. The sensitivity and specificity of Nextseq CN500 were 100% when compared with HiSeq3000 and NovaSeq6000. It also shows good performance on clinical practice and research [23, 24].

Minimal mean effective depth of coverage was 300× in tissue and 1000× in plasma samples. Clean reads which removed which removed adaptor sequences and low-quality reads were aligned to the reference human genome (hg19) by Burrows-Wheeler Aligner (BWA, version 0.7.12-r1039). Realignment and recalibration were performed using GATK (version 3.4–46-gbc02625). Single nucleotide variants (SNV), small insertions and deletions (Indels) and copy number alterations were identified by MuTect (version 1.1.4), NChot, GATK and CONTRA (v 2.0.8) respectively.

Data interpretation

SNVs, InDels, copy number alterations, and select gene fusions and rearrangements were detected which filtered out synonymous variants, known germline variants in dbSNP, and variants that occur at a population frequency of > 1% in the Exome Sequencing Project. Germline variants were interpreted to five categories following ACMG.

Evaluations of TKI treatment

The tumors were evaluated during the treatment with EGFR-TKIs to measure the tumor response according to the Response Evaluation Criteria in Solid Tumors (RECIST 1.1). The objective response rate (ORR) categories included complete response (CR), partial response (PR), stable disease (SD) and progressive disease (PD.)

Statistical analysis

Statistical analyses were performed using SPSS 20.0 software (SPSS Inc., Chicago, IL, USA). The relationships between the EGFR and ALK co-mutation with smoking status was examined using chi-square tests. The Kaplan-Meier was used to estimate the PFS and calculate a 95% confidence interval (CI).

Result

Patients with ALK/EGFR actionable mutations

We analyzed 2975 EGFR-positive patients and 271 ALK-positive patients. Different mutations were detected in each patient (Supplementary Table 2). From those, nine EGFR/ALK concurrent mutation patients were identified, accounting for 3.3% (9/271) of ALK-positive patients and 0.30% (9/2975) of EGFR-positive patients. Six patients were synchronous EGFR/ALK co-alteration, and three were heterochronous. All patients were TNM diagnosed with stage IV adenocarcinoma. The ALK and EGFR co-mutation forms included the following: three exon19Indel + EML4-ALK; two exon 19Indel + STRN-ALK; two L858R + L1152R; one L858R + EML4-ALK; and one G719C + S768I + STRN-ALK (Table 1). Of the nine patients with EGFR/ALK co-mutations, five were EGFR19del. Clinical characteristics including smoking status and specific EGFR mutation types were not associated with the co-alteration.

Table 1 Characteristics of patients with EGFR/ALK co-alterations

Outcome of EGFR-TKIs treatment in lung Cancer patients with EGFR/ALK co-mutations

We collected clinical information for the nine patients with EGFR/ ALK co-mutations. Eight of nine EGFR/ ALK co-mutation patients received EGFR-TKIs, including Osimertinib (n = 4), Gefitinib (n = 6), Afatinib (n = 1), and Icotinib (n = 2). EGFR-TKI was treated as first-line therapy in four patients, second-line therapy in five patients, and third-line therapy in four patients. Five patients received two lines of EGFR TKI, three patients received only one line. The median PFS of these patients on first-line EGFR-TKIs was 14.5 months (95% CI: 11 – NR, Fig. 1). Among the eight EGFR/ALK co-mutation patients receiving EGFR-TKIs, four had the EGFR19del/ALK co-mutation, and four had other co-mutation genotypes. Kaplan-Meier analysis showed that after the first line of EGFR-TKI treatment, the median PFS (mPFS) of patients with EGFR 19del/ALK co-mutation (n = 4) was significantly higher than that of patients with non-EGFR19del/ ALK co-mutation (n = 4, one patient had unclear PFS information, mPFS of 21.5 vs 7.25 months, p = 0.007, Fig. 2). In addition, the mPFS of patients with ALK-L1152R/EGFR (n = 2) was significantly shorter than that of patients with other co-mutation genotypes (n = 7, one patient had unclear PFS information, mPFS of 18.2 vs 4 months, p = 0.004, Fig. 3). Moreover, five patients were treated with EGFR-TKIs after the detection of a co-mutation. In this group the PFS were: two patients at 10 months; and one each at 11, 18, and 26 months, indicating that the treatment with TKI after the co-alternations of EGFR and ALK did not affect the efficacy of TKI.

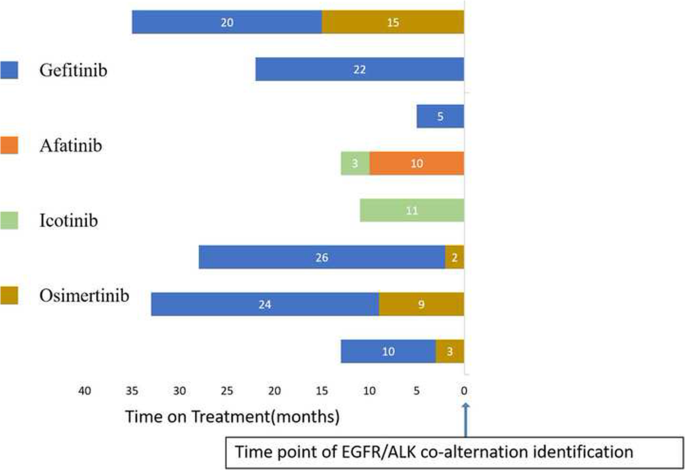

Fig. 1
figure 1

A detailed history of treatment and subsequent clinical outcomes of eight EGFR/ALK co-alternation patients are presented. The number in parentheses represent the PFS (Progression-free survival after EGFR-TKI treatment) for each drug, The arrow presents time point of EGFR/ALK co-alternation identification

Fig. 2
figure 2

Comparison of PFS between EGFR 19 del/ALK and non-EGFR 19del/ALK on EGFR-TKI (21.5 vs 7.25 months, P = 0.007)

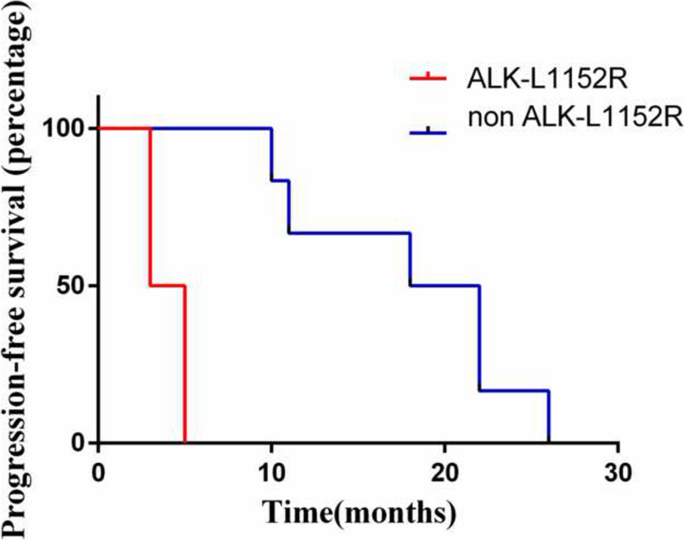

Fig. 3
figure 3

Comparison of PFS between ALK-L1152R/ EGFR and non-ALK-L1152R/ EGFR on EGFR-TKI (18.2 vs 4 months, P = 0.004)

Cox model analyses for the eight patients (including smoking status, EGFR and ALK mutation types, line of treatment, types of EGFR-TKIs, and concomitant genetic alterations) were included in the initial Cox model. By backward elimination, we found that EGFR mutation types (non-EGFR19del) and ALK rearrangement types (ALK-L1152R) are independent factors that associate with poor PFS in EGFR-TKIs treatment (HR 3.70, 95% CI: 1.76–23.58, p = 0.024; and HR 4.67, 95% CI: 1.86–33.09, p = 0.015; respectively).

Potential mechanism of TKI resistance

We performed EGFR and ALK mutation dynamic monitoring in eight of the nine EGFR / ALK co-mutation patients. Eight patients underwent EGFR / ALK dynamic monitoring twice or more. (Fig. 4). Except for one patient (T790M + C797G) who progressed on Gefitinib and subsequently on Osimertinib, the other seven EGFR-TKI resistance patients had no previously known resistance mutations. Three patients had NGS testing before taking EGFR-TKIs. None of them had ALK mutations at that time. Later, one patient (19InDel) gained an STRN-ALK after 15 months on Osimertinib, another (L858R) gained an EML4-ALK after 5 months on Gefitinib, and a third (L858R) gained an L1152R after 10 months on Afatinib. Therefore, in these three patients, ALK mutations were likely developed as resistance mechanisms during EGFR-TKIs therapies. Unfortunately, with no information on ALK status before EGFR-TKI therapies, we cannot tell whether the ALK mutations also occurred during EGFR-TKI therapies in the other five patients. Both STRN-ALK and ALK L1152R were recorded four times in our database, and they concurred with EGFR actionable mutations in 3 and 2 of the 4 records.

Fig. 4
figure 4

Dynamic monitoring in nine EGFR / ALK co-mutated patients

Discussion

EGFR mutations and EML4-ALK translocations have long been considered mutually exclusive [11, 13, 25] . However, there is increasing evidence that concurrent mutations, although rare, do occur [26, 27]. This phenomenon could result from two situations. (1) With tumor heterogeneity, different tumor cell clones separately carry EGFR mutation or ALK rearrangement [28]. (2) The same tumor cell clone carries both an EGFR mutation and an ALK rearrangement [29, 30]. In our study, we identified 9 patients with EGFR / ALK co-mutations and summarized the nine patients’ basic clinical information and treatment prognosis.

Based on our database, the frequency of concurrent EGFR and ALK mutations is relatively low, occurring in only 2.6% of ALK-positive, and 0.2% of EGFR-positive patients. Consistent with our study, Yang et al. [30] showed that the frequency of EGFR/ALK concurrence in NSCLC was 1.3%. However, a study by Liu et al. [31], found the frequency of EGFR/ALK co-alternation to be 5%. To this, we propose that the elevated measurement for EGFR and ALK concurrence resulted from the use of higher sensitivity second-generation sequencing.

Two types of ALK rearrangement (STRN-ALK and ALK L1152R.STRN) were reported to coexist more frequently with EGFR mutations than others [31]. Our study reports for the first time that the ALK rearrangement L1152R may also occur more frequently in combination with EGFR mutations.

There is limited information on the effects of pharmaceutical treatment to these concurrent mutations. A recent study showed EML4-ALK rearrangements could be a rare acquired resistance mechanism following EGFR-TKIs treatment, but there are also studies showing a more common gain of EGFR mutations following ALK-TKI [32].

In our study, a drug-resistant mutation was found after first-line treatment in only one patient (with a T790M mutation). Three patients were found to gain ALK mutations after treatment with EGFR-TKIs. This suggests that the presence of ALK mutation may be related to EGFR-TKI resistance.

In our study, the median PFS for EGFR-TKIs was14.5 months, which is longer than the PFS from phase III clinical trials for first generation EGFR-TKIs [33]. Synchronous or heterochronous EGFR/ALK co-alterations also seems benefit from EGFR-TKIs. However, our study indicates for the first time that ALK L1152R and EGFR concurrent mutations predict shorter EGFR-TKIs PFS.

This study has several limitations. (1) Though we screened over 5000 patients, only 9 EGFR/ALK co-mutations patients were found. Without further screening, we cannot draw a clear conclusion on the clinical characteristics and treatment. (2) Not all EGFR/ALK co-alternation patients were collected at baseline, and some patients lacked detailed treatment records. Therefore, the clinical efficacy of further treatment could not be fully evaluated. (3) All EGFR/ALK co-mutation patients did not receive ALK-TKI treatment, and we will need further experiments to verify our conclusions. Still, our findings do have attractive implications for clinical practice. In conclusion, we found that patients with this condition (except the specific EGFR/ ALK L1152R type) still benefit from EGFR-TKIs. We propose that ALK mutations may be a mechanism of acquired drug resistance of EGFR-TKI treatment. The underlying molecular mechanisms of concurrent mutations require further study.

Conclusion

In conclusion, we measured the frequency of EGFR and ALK co-alterations and how they may relate to patient clinical characteristics. We propose that ALK mutations can developed as resistance mechanisms during EGFR-TKIs therapies. Most EGFR/ALK co-alteration patients also benefit from first line EGFR-TKIs.

Availability of data and materials

The data and materials used and analyzed in the current study are available from the corresponding author on request.

Abbreviations

TKIs:

EGFR-tyrosine kinase inhibitors

PFS:

Progression free survival

NSCLC:

Non-small cell lung cancer

EGFR:

Epidermal growth factor receptor

ALK:

Anaplastic lymphoma kinase

NGS:

Next Generation Sequencing

ORR:

Objective response rate

CR:

Complete response

PR:

Partial response

SD:

Stable disease

PD:

Progressive disease

References

  1. Ferlay J, Soerjomataram I, Dikshit R, Eser S, Mathers C, Rebelo M, et al. Cancer incidence and mortality worldwide: sources, methods and major patterns in GLOBOCAN 2012. Int J Cancer. 2015;136(5):E359–86. https://doi.org/10.1002/ijc.29210.

    Article  CAS  PubMed  Google Scholar

  2. Francisci S, Minicozzi P, Pierannunzio D, Ardanaz E, Eberle A, Grimsrud TK, et al. Survival patterns in lung and pleural cancer in Europe 1999-2007: results from the EUROCARE-5 study. Eur J Cancer. 2015;51(15):2242–53. https://doi.org/10.1016/j.ejca.2015.07.033.

    Article  PubMed  Google Scholar

  3. Sequist LV, Soria JC, Goldman JW, Wakelee HA, Gadgeel SM, Varga A, et al. Rociletinib in EGFR-mutated non-small-cell lung cancer. N Engl J Med. 2015;372(18):1700–9. https://doi.org/10.1056/NEJMoa1413654.

    Article  PubMed  Google Scholar

  4. Janne PA, Yang JC, Kim DW, Planchard D, Ohe Y, Ramalingam SS, et al. AZD9291 in EGFR inhibitor-resistant non-small-cell lung cancer. N Engl J Med. 2015;372(18):1689–99. https://doi.org/10.1056/NEJMoa1411817.

    Article  PubMed  Google Scholar

  5. Kwak EL. Anaplastic lymphoma kinase inhibition in non-small-cell lung Cancer (vol 363, pg 1693, 2010). New Engl J Med. 2011;364(6):588.

    CAS  Google Scholar

  6. Hirsch FR, Bunn PA. EGFR testing in lung cancer is ready for prime time. Lancet Oncol. 2009;10(5):432–3. https://doi.org/10.1016/S1470-2045(09)70110-X.

    Article  PubMed  Google Scholar

  7. Shi Y, Li J, Zhang S, Wang M, Yang S, Li N, et al. Molecular epidemiology of EGFR mutations in Asian patients with advanced non-small-cell lung Cancer of adenocarcinoma histology - mainland China subset analysis of the PIONEER study. PLoS One. 2015;10(11):e0143515. https://doi.org/10.1371/journal.pone.0143515.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  8. Skov BG, Hogdall E, Clementsen P, Krasnik M, Larsen KR, Sorensen JB, et al. The prevalence of EGFR mutations in non-small cell lung cancer in an unselected Caucasian population. APMIS. 2015;123(2):108–15. https://doi.org/10.1111/apm.12328.

    Article  CAS  PubMed  Google Scholar

  9. Fukuoka M, Wu YL, Thongprasert S, Sunpaweravong P, Leong SS, Sriuranpong V, et al. Biomarker analyses and final overall survival results from a phase III, randomized, open-label, first-line study of gefitinib versus carboplatin/paclitaxel in clinically selected patients with advanced non-small-cell lung cancer in Asia (IPASS). J Clin Oncol. 2011;29(21):2866–74. https://doi.org/10.1200/JCO.2010.33.4235.

    Article  CAS  PubMed  Google Scholar

  10. Koivunen JP, Mermel C, Zejnullahu K, Murphy C, Lifshits E, Holmes AJ, et al. EML4-ALK fusion gene and efficacy of an ALK kinase inhibitor in lung cancer. Clin Cancer Res. 2008;14(13):4275–83. https://doi.org/10.1158/1078-0432.CCR-08-0168.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Shaw AT, Yeap BY, Mino-Kenudson M, Digumarthy SR, Costa DB, Heist RS, et al. Clinical features and outcome of patients with non-small-cell lung cancer who harbor EML4-ALK. J Clin Oncol. 2009;27(26):4247–53. https://doi.org/10.1200/JCO.2009.22.6993.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  12. Takeuchi K, Choi YL, Soda M, Inamura K, Togashi Y, Hatano S, et al. Multiplex reverse transcription-PCR screening for EML4-ALK fusion transcripts. Clin Cancer Res. 2008;14(20):6618–24. https://doi.org/10.1158/1078-0432.CCR-08-1018.

    Article  CAS  PubMed  Google Scholar

  13. Gainor JF, Varghese AM, Ou SH, Kabraji S, Awad MM, Katayama R, et al. ALK rearrangements are mutually exclusive with mutations in EGFR or KRAS: an analysis of 1,683 patients with non-small cell lung cancer. Clin Cancer Res. 2013;19(15):4273–81. https://doi.org/10.1158/1078-0432.CCR-13-0318.

    Article  CAS  PubMed  Google Scholar

  14. Soda M, Takada S, Takeuchi K, Choi YL, Enomoto M, Ueno T, et al. A mouse model for EML4-ALK-positive lung cancer. P Natl Acad Sci USA. 2008;105(50):19893–7. https://doi.org/10.1073/pnas.0805381105.

    Article  Google Scholar

  15. Sequist LV, Heist RS, Shaw AT, Fidias P, Rosovsky R, Temel JS, et al. Implementing multiplexed genotyping of non-small-cell lung cancers into routine clinical practice. Ann Oncol. 2011;22(12):2616–24. https://doi.org/10.1093/annonc/mdr489.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  16. Sasaki T, Koivunen J, Ogino A, Yanagita M, Nikiforow S, Zheng W, et al. A novel ALK secondary mutation and EGFR signaling cause resistance to ALK kinase inhibitors. Cancer Res. 2011;71(18):6051–60. https://doi.org/10.1158/0008-5472.CAN-11-1340.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Zhuo M, Guan Y, Yang X, Hong L, Wang Y, Li Z, et al. The prognostic and therapeutic role of genomic subtyping by sequencing tumor or cell-free DNA in pulmonary large-cell neuroendocrine carcinoma. Clin Cancer Res. 2019, clincanres.0556.2019. https://doi.org/10.1158/1078-0432.CCR-19-0556.

  18. Sun S, Liu Y, Eisfeld AK, Zhen F, Jin S, Gao W, et al. Identification of Germline mismatch repair gene mutations in lung Cancer patients with paired tumor-Normal next generation sequencing: a retrospective study. Front Oncol. 2019;9:550. https://doi.org/10.3389/fonc.2019.00550.

    Article  PubMed  PubMed Central  Google Scholar

  19. Jeon SA, Park JL, Park SJ, Kim JH, Goh SH, Han JY, et al. Comparison between MGI and Illumina sequencing platforms for whole genome sequencing. Genes Genomics. 2021;43(7):713–24. https://doi.org/10.1007/s13258-021-01096-x.

    Article  CAS  PubMed  Google Scholar

  20. Wang S, Chen R, Tang Y, Yu Y, Fang Y, Huang H, et al. Comprehensive genomic profiling of rare tumors: routes to targeted therapies. Front Oncol. 2020;10:536. https://doi.org/10.3389/fonc.2020.00536.

    Article  PubMed  PubMed Central  Google Scholar

  21. Xu J, Qu S, Sun N, Zhang W, Zhang J, Song Q, et al. Construction of a reference material panel for detecting KRAS/NRAS/EGFR/BRAF/MET mutations in plasma ctDNA. J Clin Pathol. 2021;74(5):314–20. https://doi.org/10.1136/jclinpath-2020-206745.

    Article  CAS  PubMed  Google Scholar

  22. Wang SH, Yu Y, Fang Y, Huang HY, Wu DW, et al. Whole-exome sequencing reveals genetic underpinnings of salivary adenoid cystic carcinoma and tongue carcinoma in Chinese population. J Genet Genomics. 2020;47(7):397–401.

  23. Sun SB, Liu YQ, Eisfeld AK, Zhen FX, Jin SD, Gao W, et al. Identification of Germline mismatch repair gene mutations in lung Cancer patients with paired tumor-Normal next generation sequencing: a retrospective study. Front Oncol. 2019;9. https://doi.org/10.3389/fonc.2019.00550.

  24. Ai XH, Cui JW, Zhang JX, Chen RR, Lin W, Xie CY, et al. Clonal architecture of EGFR mutation predicts the efficacy of EGFR-tyrosine kinase inhibitors in advanced NSCLC: a prospective multicenter study (NCT03059641). Clin Cancer Res. 2021;27(3):704–12. https://doi.org/10.1158/1078-0432.CCR-20-3063.

    Article  CAS  PubMed  Google Scholar

  25. Li Y, Li Y, Yang T, Wei S, Wang J, Wang M, et al. Clinical significance of EML4-ALK fusion gene and association with EGFR and KRAS gene mutations in 208 Chinese patients with non-small cell lung cancer. PLoS One. 2013;8(1):e52093. https://doi.org/10.1371/journal.pone.0052093.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  26. Popat S, Vieira de Araujo A, Min T, Swansbury J, Dainton M, Wotherspoon A, et al. Lung adenocarcinoma with concurrent exon 19 EGFR mutation and ALK rearrangement responding to erlotinib. J Thorac Oncol. 2011;6(11):1962–3. https://doi.org/10.1097/JTO.0b013e31822eec5e.

    Article  PubMed  Google Scholar

  27. Tiseo M, Gelsomino F, Boggiani D, Bortesi B, Bartolotti M, Bozzetti C, et al. EGFR and EML4-ALK gene mutations in NSCLC: a case report of erlotinib-resistant patient with both concomitant mutations. Lung Cancer. 2011;71(2):241–3. https://doi.org/10.1016/j.lungcan.2010.11.014.

    Article  CAS  PubMed  Google Scholar

  28. Marusyk A, Almendro V, Polyak K. Intra-tumour heterogeneity: a looking glass for cancer? Nat Rev Cancer. 2012;12(5):323–34. https://doi.org/10.1038/nrc3261.

    Article  CAS  PubMed  Google Scholar

  29. Ulivi P, Puccetti M, Capelli L, Chiadini E, Bravaccini S, Calistri D, et al. Molecular determinations of EGFR and EML4-ALK on a single slide of NSCLC tissue. J Clin Pathol. 2013;66(8):708–10. https://doi.org/10.1136/jclinpath-2013-201502.

    Article  CAS  PubMed  Google Scholar

  30. Yang JJ, Zhang XC, Su J, Xu CR, Zhou Q, Tian HX, et al. Lung cancers with concomitant EGFR mutations and ALK rearrangements: diverse responses to EGFR-TKI and crizotinib in relation to diverse receptors phosphorylation. Clin Cancer Res. 2014;20(5):1383–92. https://doi.org/10.1158/1078-0432.CCR-13-0699.

    Article  CAS  PubMed  Google Scholar

  31. Liu J, Mu Z, Liu L, Li K, Jiang R, Chen P, et al. Frequency, clinical features and differential response to therapy of concurrent ALK/EGFR alterations in Chinese lung cancer patients. Drug Des Devel Ther. 2019;13:1809–17. https://doi.org/10.2147/DDDT.S196189.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  32. Imamura F, Inoue T, Kimura M, Nishino K, Kumagai T. A long-term survivor of non-small-cell lung cancer harboring concomitant EGFR mutation and ALK translocation. Respir Med Case Rep. 2016;19:137–9. https://doi.org/10.1016/j.rmcr.2016.09.002.

    Article  PubMed  PubMed Central  Google Scholar

  33. Urata Y, Katakami N, Morita S, Kaji R, Yoshioka H, Seto T, et al. Randomized phase III study comparing Gefitinib with Erlotinib in patients with previously treated advanced lung adenocarcinoma: WJOG 5108L. J Clin Oncol. 2016;34(27):3248–57. https://doi.org/10.1200/JCO.2015.63.4154.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

Not applicable.

Funding

This work was supported by the Beijing Municipal Administration of Hospitals Incubating Program (PX2020044, PX2019038); the National Key R&D Program of China (No.2017YFC0907900/2017YFC0907904); the Beijing Youth Program for Outstanding Talents (2018000021469G262); the Beijing Hospitals Authority Youth Programme (QML20191112); TCP Chunya Program for Outstanding Talents supported by Beijing Yidu Education Technology Co., Ltd; and the Beijing Medical Award Foundation Youth Committee of Lung Cancer Crowd-funding Project (202001001). The funders had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Author information

Authors and Affiliations

Authors

Contributions

XDY and JZ analyzed the patient data and wrote the manuscript. ZY and MLZ collected clinical data of the patients. MZ, RRC and XFX interpreted the NGS data. JZ design the study and was a major contributor in writing the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Jun Zhao.

Ethics declarations

Ethics approval and consent to participate

This study was approved by the Ethics Committee of the Peking University Cancer Hospital in Beijing, China (2018KT105). All other centers are included in this agreement (Cancer hospital, Chinese Academy of Medical Sciences and Tsinghua Changgung Hospital). All patients agreed to use their clinical data for scientific purposes. All patients who used tissue and medical data in this study provided written informed consent in accordance with the Helsinki Declaration.

Consent for publication

Not Applicable.

Competing interests

The authors report no conflicts of interest in this work.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Table S1

. The list of 59 gene targeted by NGS. Table S2. The list of all mutations detected by NGS.
