Activated innate lymphoid cell populations accumulate in human tumour tissues

Abstract

Background

Innate lymphoid cells (ILC) are part of a heterogeneous family of haematopoietic effector cells which lack re-arranged antigen-specific receptors. They promote host defense and contribute to tissue and metabolic homeostasis, wound healing and immune surveillance. Their role in human cancer immunity is less defined, and therefore we aimed to identify the frequency and phenotype of distinct ILC groups in various types of cancer.

Methods

Tissue samples and peripheral blood were collected from patients undergoing surgical resection of gastrointestinal and breast tumours. Single cell suspension of tumour tissue was immediately obtained following surgery using tumour dissociation.

Results

We observed significantly higher frequencies of ILC2 (p value: 0.04) in malignant breast cancer tissue and significantly higher frequencies of group 1 ILC (p value: 0.001) in malignant gastrointestinal tumours. Tumour infiltrating ILC were found to show an activated phenotype with higher expression of MHC-II, KLRG1, early activation marker CD69 and CD44.

Conclusions

Activated innate lymphoid cells infiltrate tumours dependent on tumour type and location.

Peer Review reports

Background

Significant advances have been made in understanding the immune surveillance mechanisms in identifying and destroying tumour cells [1, 2]. The importance of adaptive immunity [3] as a key effector cell mechanism in cancer control is now well documented. In colorectal cancer, infiltration of effector memory CD8+ T cells is associated with a reduction in early invasion and improved survival [4]. Over the past 20 years many tumour specific antigens have been identified which has led to clinical trials of vaccines, adjuvants, therapeutic antibodies and adoptive T cell immunotherapies. However key limitations remain in targeted cancer immunotherapy [5]. The prevailing ability of the tumour cells to evade recognition by the immune system gave rise to the concept of immunoediting [6].

Another cell population that has been implicated in immune defence against tumour cells are natural killer (NK) lymphocytes. Infiltration of NK cells is a recognised feature of most cancers [2, 7]. Unlike adaptive immune responses, NK cells are not antigen specific and rather identify tumour cells through expression of stress molecules or lack of major histocompatibility complex (MHC-I) receptors ‘missing self’ [8]. NK cells are a prototype of a newly discovered family of innate haematopoietic cells (innate lymphoid cells, ILC) with effector functions parallel to adaptive T cell lymphocytes. Three groups of ILC have been characterized based on signature cytokine secretion profile and expression of transcription factors. Group 1 ILC have cytotoxic abilities and the capacity to produce IFN-γ and TNF-α. Their effector function depends on expression of T-bet and Eomes transcription factors. NK cells and ILC1 contribute to this group of ILC [9]. Group 2 ILC are mainly implicated in allergic responses [10, 11] and defence against helminth infections but also have roles in epithelial repair and metabolic homeostasis. They produce IL-13, IL-4 and IL-5 and similar to Th2 lymphocytes express GATA-3 and ROR-α transcription factors [12]. Group 3 ILC are a RORγt-dependent group of ILC including lymphoid tissue inducers (LTi), natural cytotoxicity receptor (NCR)+ and NCR− ILC3s. LTis are essential for generation of lymph nodes, Peyer’s patches and isolated lymphoid follicles. Similar to Th17 and Th22, ILC3s produce IL-17A and IL-22 [12, 13].

Given that ILC are mainly located in pathogen entry sites e.g. mucosal surfaces of gastrointestinal tract, respiratory system and the skin, their main function was considered to be protection against infections. However, recent data show that ILC also contribute to immunity against cancer in mice [14]. Dadi and colleagues have identified an unconventional population of TCR− NK1.1+ CD49ahi cells in mammary tumour tissue of MMTV-PyMT (PyMT) mice [15]. Due to their distinct features they were designated ‘type 1-like ILC’. These cells expressed high levels of granzyme B and exhibited cytolytic activity towards malignant cells [15]. In another study, IL-22 produced by ILC3s promoted bacteria-induced colorectal cancer (CRC) in genetically susceptible 129SvEv.RAG−/− mice when infected with H.hepaticus and treated with the carcinogen azoxymethane (AOM) [16]. Furthermore, higher frequencies of CD3− IL-22+ cells have been observed in the tumour tissue of patients with CRC [16].

ILC2 and ILC2 related genes (RORα, GATA3, T1/ST2, IL-17RB, CRTH2, IL-33, IL-5, and IL-4) were increased in the peripheral blood of patients with gastric cancer compared to healthy controls [17]. Jovanovic et al. showed accumulation of IL-13-producing Lin− Sca-1+ ST2+ innate lymphoid cells (ILC) and reduction of NK cells in 4 T1 breast cancer model following administration of IL-33. IL-33 promoted tumor growth, development of lung and liver metastases, intratumoral cell proliferation and neovascularisation [18].

While ILC family sub-populations have been investigated in animal models, the role of these cells in protection against human malignancy has been less explored. Nonetheless the potential contribution of these cells has been reviewed extensively [19,20,21,22,23]. Here we examined the frequency of the ILC family in tumour tissues and studied their phenotypic changes.

Methods

Patient selection and sample preparation

Samples were obtained from 13 patients with gastrointestinal tumours, 16 patients with malignant breast cancer and 5 patients with benign breast tumours that underwent surgical removal of tumour tissue (Additional file 1: Table S1). Gastrointestinal tumours comprised esophageal, gastric, colon and rectal tumours. Peripheral blood was taken from each patient before commencing anaesthesia. The samples were provided by Xinjiang Tumour hospital and ethical approval was obtained from Xinjiang Tumour Hospital ethical committee and Oxford Tropical Research Ethics Committee (587–16) and London - City & East Research Ethics Committee (16/LO/1607).

Tumor tissue samples were washed repeatedly and then immediately dissociated into single-cell suspensions following surgery using tumour dissociation kit (Miltenyi Biotec 130–095-929). Solution A, Solution B and Solution C from tumor dissociation kit were dissolved by sterile PBS solution and aliquoted into small tubes stored at − 20 degrees. Briefly, samples were cut into small pieces, (1-3 mm) and transferred into C tubes (Miltenyi Biotec 130–096-334). Before loading the C tube into gentleMACS Octo-dissociator (Miltenyi Biotec 130–096-427), 1 unit of Solution A, Solution B and Solution C were added into C tube containing 10 ml RPMI1640. The tubes were then run on ‘h_tumor_01’ and ‘h_tumor_02’ programmes respectively with intervals of 30- min incubation at 37 ͦC with rotation. Following second incubation the tubes were run on ‘h_tumor_3’ programme and samples passed through 70 μm strainer. The cells were centrifuged and washed with RPMI 1640 medium. The enzymatic degradation steps were removed for dissociation of gastrointestinal tumours as this did not render any benefits in terms of cell yield. PBMCs were isolated from whole blood samples using ficoll density gradient centrifugation.

Flow cytometry

The following anti human antibodies were purchased from Biolegend unless stated otherwise. CD19 (SJ25C1; BD Biosciences), CD11b (DCIS1/18; Abcam), CD11c (BU15), FcεRI (AER-37 (CRA-1)), CD14 (MφP9; BD Biosciences), TCRαβ (IP26), TCRγδ (B1), CD3 (SK7 and OKT3), CD45 (H130), CRTH2 (BM16; Miltenyi Biotec), CD127 (A019D5), c-Kit (104D2), CD44 (G45–26 and IM7), CCR7 (G043H7), PD-1 (EH12.2H7), CTLA-4 (L3D10 and BNI3 BD Biosciences), CD56 (HCD56 and 5.1H1L), CD69 (FN50), KLRG1 (SA231A2), MHC II (L243) and LIVE/DEAD Fixable Violet Dead Cell Stain Kit. Lineage stains were combined through a single channel, which allowed ILC phenotypic marker assessment but limited the potential to correlate with other cell populations.

Samples were acquired using FACSDiva software on LSR Fortessa (Becton Dickson). The flow cytometry data were analysed using FlowJo software.

Results

Group 2 ILC are enriched in breast cancer tissue

To investigate the potential immune surveillance ability of ILC in breast cancer, we compared the frequency of these cells in malignant and benign tissues. To identify ILC, the single cell suspensions of tumours were stained with common lineage markers (CD3, CD14, CD19, CD11c, CD11b, CD56, IL-3R, FcεRI, TCRαβ and TCRγδ), CD45, CRTH2, IL-7Rα and c-Kit. Lineage negative cells expressing haematopoietic and lymphoid markers CD45 and IL-7Rα were selected and based on the expression of CRTH2 and c-Kit were sorted into group 1 ILC (CRTH2− c-Kit−), group 2 ILC (CRTH2+ c-Kit +/−) and group 3 ILC (CRTH2− c-Kit+) (Additional file 1: Figure S1 and Table 1). While the frequency of group 1 and group 3 ILC remained similar, significantly higher percentages (p value: 0.04) of ILC2 were observed in malignant cancer tissue compared to benign tissue (Fig. 1a). Furthermore, NK cells were also enriched (p value: 0.01) in malignant breast cancer tissue (Fig. 1a). Interestingly we did not observe such differences in the peripheral blood of patients with benign or malignant breast tumours (Fig. 1b). It is important to be cautious about over-interpreting small cell numbers and percentages. We have tried to address this by acquiring all events from each biopsy, and by having large patient cohorts using the same gating strategy throughout.

Table 1 ILC populations surface markers
Fig. 1
figure 1

Frequency of ILC populations in breast and GI tumours. Percentage of lineage negative CD45 positive ILC groups in benign (n = 4) and malignant breast tumours (n = 17) determined by flow cytometry (a), PBMCs from patients with benign (n = 4) and malignant (n = 15) breast tumours (b), lesional (n = 15) and para-lesional (n = 15) gastrointestinal tumour tissues (c). Frequency of ILC1, ILC2 and ILC3 is shown as the percentage of lineage negative, CD56−, CD45+ and NK cells are gated from lineage negative, CD45+ cells

Group 1 ILC and NK cells are enriched in malignant gastrointestinal tissue

In order to investigate whether the differences were unique to breast tissue, we also examined the malignant and para-malignant tissues of different gastrointestinal tumours including eosophageal, gastric, colonic and rectal cancers. Compared to para-tumour tissue, ILC1 (p value: 0.001) and NK cells (p value: 0.01) were accumulated in the malignant tissues, whereas smaller numbers of ILC3s (p value: 0.04) were found in the tumour tissues (Fig. 1c).

PD-1 and CTLA-4 are upregulated on tumour associated ILC populations

Programmed Death 1 (PD-1, CD279) and Cytotoxic T-Lymphocyte Associated protein (CTLA-4) are inhibitory receptors that modulate immune responses and attenuate tissue damage [24]. Tumour cells can harbor checkpoint receptors to evade immune recognition, and blocking these receptors can augment immune responses against cancer. Interaction of PD-1 with its ligands, PDL1 and PDL2, on macrophages and dendritic cells downregulates IL-2 production, inhibits activation, proliferation and cytokine production [25, 26]. Tumour cells can induce cytotoxic T cell unresponsiveness by acquiring the expression of PD-1 ligands [27]. Monoclonal antibodies targeting PD-1, Lambrolizumab, Nivolumab and Pembrolizumab [28] have favorable immunotherapeutic effects in treatment of a variety of cancers including melanoma, renal and lung cancers [29, 30]. Binding of CTLA-4 to its natural ligands CD80 and CD86 can induce apoptosis and clonal deletion of activated human T cells [31]. CTLA-4 antagonist, Ipilimumab has been approved in treatment of melanoma and breast cancer [32].

To evaluate the presence of immune checkpoints, we examined ILC populations in tumour tissue. Although we did not observe differences in the expression of CTLA-4 and PD-1 on ILC populations in malignant and benign breast tumour tissue (Fig. 2a, and Additional file 1: Figure S2 and Additional file 1: Figure S3), the level of PD-1 was significantly upregulated in tumour associated ILC2 (p value: 0.04) and NK cells (p value: 0.02) compared to circulating ILC in peripheral blood (Fig. 2a). CTLA-4 was also significantly higher on ILC1 (p value: 0.03), ILC2 (p value: 0.02) and NK cells (p value: 0.005) (Fig. 2a). Interestingly, we observed higher expression of PD-1 on ILC2 (p value: 0.03) and ILC3 (p value: 0.04) populations in GI tumours compared to para lesional tissue, while CTLA-4 was not significantly altered (Fig. 2b and Additional file 1: Figure S4 and Additional file 1: Figure. S5).

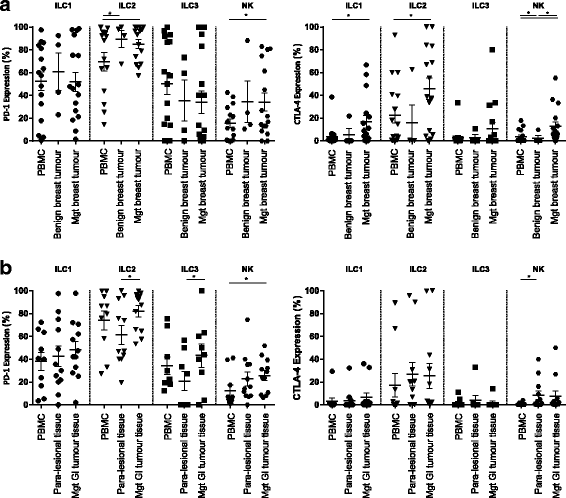

Fig. 2
figure 2

Expression of PD1 and CTLA-4 on ILC populations. Expression of PD1 (a left graph) and CTLA-4 (a right graph) on ILC groups in peripheral blood of patients with malignant breast tumour (n = 14–16), benign breast tumour tissue (n = 4) and malignant breast tumour tissue (n = 14–16) determined by flow cytometry. Expression of PD1 (b left graph) and CTLA-4 (b right graph) on ILC groups in peripheral blood of patients with malignant GI tumour (n = 8–12), para-lesional tumour tissue (n = 8–12) and malignant GI tumour tissue (n = 8–12)

High expression of MHC-II, KLRG1, CD69 and CD44 was observed in tumour infiltrating innate lymphoid cells

Successful activation of the immune cells is essential in elimination of tumour cells. To assess the activation status of tumour infiltrating ILC population, we investigated the expression of Major Histocompatibility Complex (MHC)-II, CD69, CD44, Killer cell lectin-like receptor G1 (KLRG1) and CCR7 in peripheral blood, benign and malignant breast tumour tissue and malignant and para-malignant tissue in GI cancers (Additional file 1: Figure S2, Additional file 1: Figure S3, Additional file 1: Figure S4, Additional file 1: Figure S5).

MHC-II

Recently it has been shown that innate lymphoid cells can enhance adaptive immune responses and promote inflammation either indirectly by producing cytokines and induction of lymphocyte priming through dendritic cells or directly by MHC-II dependent interactions with T cells [33,34,35]. ILC populations in benign (p values ILC1: 0.01, ILC2: 0.01, ILC3:0.0001, NK: 0.04) and malignant (p values ILC1: 0.0001, ILC2: 0.009, ILC3:0.003, NK: 0.0005) breast tumour tissue express significantly higher level of HLA-DR compared to peripheral blood (Fig. 3a, and Additional file 1: Figure S2 and Additional file 1: Figure S3). Similarly, we observed a significant increase in expression of MHC-II on the ILC2 (p value: 0.02) population in the GI malignant tissue compared to peripheral blood but this difference was not found in ILC1 and ILC3 populations (Fig. 3a, and Additional file 1: Figure S4 and Additional file 1: Figure S5).

Fig. 3
figure 3

Expression of MHC II and Klrg1 on ILC populations. Expression of MHC II (a left graph) and Klrg1 (b left graph) on ILC groups in peripheral blood of patients with malignant breast tumour (n = 16–17), benign breast tumour tissue (n = 4) and malignant breast tumour tissue (n = 16–17) determined by flow cytometry. Expression of MHC II (a right graph) and Klrg1 (b right graph) on ILC groups in peripheral blood of patients with malignant GI tumour (n = 9–12), para-lesional tumour tissue (n = 9–12) and malignant GI tumour tissue (n = 9–12)

KLRG1

Both NK and antigen experienced T cells can express co-inhibitory receptor killer-cell lectin like receptor G1 (KLRG1). Around 20%–40% of T cells in young adults can express this marker [36] which rises to 90% in individuals over 65 years of age [37]. On T cells, KLRG1 has been considered a marker of senescence and memory population. Effective immunotherapy in mice with B cell lymphoma enhances expansion of KLRG1 expressing T lymphocytes [38].

ILC populations, in mice and human, express KLRG1 receptor which is an indicator of activation. A population of IL-25 responsive KLRG1hi group 2 innate lymphoid cells, designated inflammatory ILC2s ‘iILC2’ was discovered in mice following infection. These cells showed more plasticity than KLRG1int cells and could give rise to IL-17A producing ILC3s [39]. Higher frequencies of activated KLRG1 expressing ILC2 were detected in skin lesions of atopic dermatitis patients [10]. KLRG1 expressing NK cells protect against pulmonary metastatic disease [40] and colorectal carcinoma [41].

Investigating the expression of KLRG1 on tumour infiltrating ILC populations showed that a higher percentage of ILC in blood (p values ILC1: 0.0001, ILC2: 0.005, ILC3: 0.0002, NK: 0.0001) and breast tissue (p values ILC1: 0.0006, ILC2: 0.02, ILC3: 0.002, NK: 0.03) of patients with malignant breast tumour express KLRG1 compared to patients with benign tumours, consistent with a more activated phenotype (Fig. 3b, and Additional file 1: Figure S2 and Additional file 1: Figure S3). Similarly, ILC1 (p value: 0.01) and ILC2 (p value: 0.0009) populations in malignant GI tumour tissue express significantly elevated KLRG1 compared to paramalignant tissue (Fig. 3b and Additional file 1: Figure S4 and Additional file 1: Figure S5).

CD69 and CCR7

The glycoprotein CD69 is a marker of early activation on lymphocytes [42]. Following activation in lymph nodes, lymphocytes upregulate the expression of CD69 which influences sensing the sphingosine 1 phosphate 1 (S1P1) gradient. This gradient directs lymphocytes between tissue and lymph nodes. Therefore, expression of CD69 facilitates the peripheral tissue retention of cells [43].

In contrast, the chemokine receptor CCR7 binds to CCL19 and CCL21 and guides lymphocytes into the lymph nodes [43]. Tumour infiltrating lymphocytes have higher expression of CD69 and lower expression of CCR7.

Although the contribution of CD69 and CCR7 on trafficking of innate lymphoid cells is yet to be established, several studies have shown the up-regulation of CD69 in ILC activation, and CCR7 dependent migration of ILC to draining lymph nodes [44,45,46,47].

Evaluating the phenotype of tumour infiltrating ILC in breast and malignant GI carcinomas showed a significantly higher frequency of ILC expressing the early activation marker CD69 compared with circulating innate lymphocytes (Fig. 4a and Additional file 1: Figure S2, Additional file 1: Figure S3, Additional file 1: Figure S4, Additional file 1: Figure S5). Furthermore, the expression of CCR7 was significantly lower on ILC1 (p value: 0.008) and ILC3s (p value: 0.02) isolated from GI tumor tissue when compared to blood. We did not observe significant changes in CCR7 expression in breast cancer tissue compared to peripheral blood (Fig. 4b and Additional file 1: Figure S2, Additional file 1: Figure S3, Additional file 1: Figure S4, Additional file 1: Figure S5).

Fig. 4
figure 4

Expression of CD69, CCR7 and CD44 on ILC populations. Expression of CD69 (a left graph), CCR7 (b left graph) and CD44 (c left graph) on ILC groups in peripheral blood of patients with malignant breast tumour (n = 14–17), benign breast tumour tissue (n = 4) and malignant breast tumour tissue (n = 14–17) determined by flow cytometry. Expression of CD69 (a right graph), CCR7 (b right graph) and CD44 (c right graph) on ILC groups in peripheral blood of patients with malignant GI tumour (n = 9–13), para-lesional tumour tissue (n = 9–13) and malignant GI tumour tissue (n = 9–13)

CD44

Membrane glycoprotein CD44 is an activation marker that has been extensively studied in malignant and inflammatory conditions. CD44 contributes to the rearrangement of cytoskeleton and initiation of effector responses in lymphocytes [48]. Blocking CD44 on dendritic cells inhibits activation and proliferation of naïve T helper cells [49]. Activated group 2 ILC have been shown to express high levels of CD44 in lungs and to be involved in allergic airway inflammation [50].

Studying the expression of CD44 on tumour infiltrating ILC and peripheral blood confirmed high expression of CD44 on all ILC populations in patients with breast or malignant GI tumours (Fig. 4c and Additional file 1: Figure S2, Additional file 1: Figure S3, Additional file 1: Figure S4, Additional file 1: Figure S5).

Discussion

Since identification of the innate lymphoid cell family, their emerging roles have included immunity, tissue repair, metabolism and inflammation. A role in tumorigenesis and/or cancer control has been raised but the data are largely based on animal model studies [15, 19, 21]. Understanding of immune regulation of malignancies is important for the development of future therapeutic strategies. Here, albeit with caveat of the challenges of cell numbers obtained when handling human tissue biopsies, we show enrichment of ILC populations within different cancers, together with altered activation status. These findings would support a role for ILC in cancer pathogenesis, however such correlative data do not prove causality.

IFN-γ is the cardinal cytokine produced by ILC1 and it is a critical regulator of anti-tumour responses. The anti-proliferative activity of IFN-γ is mediated by activation of STAT-1 and induction of p21WAF1/CIP1 and p27Kip1 that bind to cyclin dependent kinases-2 and 4 (CDK) [51]. IFN-γ/STAT1 pathway also induces caspase 1, FAS and FASL and promotes apoptosis [52]. Production of IFN-γ by NKT cells enhances cytolytic activity of NK effector cells [53]. The anti-tumour activity of ILC1 like cells were shown in a PyMT mouse mammary tumor model. These cells express high levels of NK1.1, CD49a, CD103, granzyme B and TRAIL. ILC1 exhibit potent cytotoxicity against mammary tumours and inhibit cancer growth [15]. Here we observed enrichment of NK and ILC1 cells in malignant gastrointestinal tumours compared to the adjacent tissue.

On the contrary to ILC1 and NK cells, cytokines that activate group 2 ILC may be more protumourigenic. For example, IL-33 promotes chronic inflammation and tumour development in some models. Serum levels of IL-33 are increased in breast, lung, gastric and hepatocellular carcinomas. Blocking IL-33 receptor (ST2) reduced generation and size of tumours in a colon cancer model [54]. In addition, type 2 cytokines are shown to promote generation of tumours. IL-13 can induce progression of prostate tumours [55] and enhance M2 phenotype polarization of macrophages [56]. In patients with gastric cancer, a higher frequency of ILC2 was observed in peripheral blood and was thought to contribute to an immunosuppressive microenvironment [17]. Furthermore, an increase in endogenous levels of IL-33 were observed in the 4 T1 model of breast cancer that correlated with cancer progression and metastasis. ILC2, alternatively activated M2 macrophages and myeloid derived suppressor cells accumulate in intramural tissue following administration of IL-33 [18]. Similar to observations in the 4 T1 mouse model of breast cancer, we detected higher frequency of activated ILC2 in human malignant breast tumour tissue compared to benign tissue.

Both pro- and anti- tumour properties of group 3 innate lymphoid cells have been observed. 129SvEv.RAG−/− mice infected with H.hepaticus and treated with the carcinogen azoxymethane (AOM) develop IL-22 dependent colorectal cancer. Colonic ILC3s are thought to be the source of IL-17A and IL-22 and are found in higher frequencies in this model [16]. In contrast, in human non-small cell lung cancer (NSCLC) NKp44+ ILC3 accumulate in tertiary lymphoid structures. These cells are a source of IL-22, TNF-α, IL-8 and IL-2. ILC3 were found in higher frequencies in early stages of tumour and their presence correlated with density of protective lymphoid structures inside the tumour [57].

Comparing tumour infiltrating ILC populations with circulating ILC, showed that ILC populations have an activated phenotype in tumour tissue with higher expression of MHC-II, KLRG1, CD69 and CD44. Unlike adaptive immune responses, ILC populations lack RAG-dependent rearranged antigen receptors. They can be activated by direct interactions mediated by pattern recognition receptors (PRR) and natural cytotoxicity receptors (NCR) or indirectly by activating cytokines. Tumour associated ILC are an early source of innate cytokines. Direct interaction with cancer cells and inflammatory tumour microenviroments may contribute to their activated phenotype. Here we present an observational study, but it will clearly be important to proceed to define the underlying mechanistic associations.

Functional diversity of ILC populations combined with expression of similar activatory/ inhibitory receptors make it difficult to extrapolate the use of blocking or activatory agents. For instance blocking inhibitory receptors KLRG1, PD1 and CTLA-4 on ILC1 population may help in increasing production of anti-tumour cytokines, IFN-γ and TNF-α, but as these receptors are also expressed highly on ILC2 population in tumour environments, using blocking agents might contribute to increase in type 2 cytokine production and modulate tumour growth. Further studies are crucial to find strategies to specifically target ILC subpopulations to define underlying mechanisms and new approaches to treatment.

Most studies on the role of innate lymphoid cells in cancer have been done on animal models. Therefore, further clinical investigations in humans are required to define the extent of their role in cancer. It is likely that not only the intrinsic ability of ILC but also the nature of transformed cells and tumour microenvironment are essential determinant factors. Further understanding of their role provides novel targets in immunotherapeutic strategies to treat cancer.

Conclusions

Innate lymphoid cells infiltrate tumours and show altered activation status. These findings would be consistent with a role for innate lymphoid cells in disease or its control. Further understanding of mechanism may contribute to future therapeutic advance.

Abbreviations

CTLA-4:

Cytotoxic T-lymphocyte-associated protein 4

IFN:

Interferon

ILC:

Innate lymphoid cells

KLRG-1:

Killer cell lectin-like receptor 1

MHC:

Major histocompatibility complex

NCR:

Natural cytotoxicity receptor

NK:

Natural Killer

PD-1:

Programmed cell death protein 1

PDL1:

Programmed death-ligand 1

References

  1. Swann JB, Smyth MJ. Immune surveillance of tumors. J Clin Invest. 2007;117(5):1137–46.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  2. Chow MT, Moller A, Smyth MJ. Inflammation and immune surveillance in cancer. Semin Cancer Biol. 2012;22(1):23–32.

    Article  CAS  PubMed  Google Scholar

  3. Yang Q, et al. Antitumor activity of NK cells. Immunol Res. 2006;36(1–3):13–25.

    Article  PubMed  Google Scholar

  4. Pages F, et al. Effector memory T cells, early metastasis, and survival in colorectal cancer. N Engl J Med. 2005;353(25):2654–66.

    Article  CAS  PubMed  Google Scholar

  5. Coulie PG, et al. Tumour antigens recognized by T lymphocytes: at the core of cancer immunotherapy. Nat Rev Cancer. 2014;14(2):135–46.

    Article  CAS  PubMed  Google Scholar

  6. Kim R, Emi M, Tanabe K. Cancer immunoediting from immune surveillance to immune escape. Immunology. 2007;121(1):1–14.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  7. Waldhauer I, Steinle A. NK cells and cancer immunosurveillance. Oncogene. 2008;27(45):5932–43.

    Article  CAS  PubMed  Google Scholar

  8. Morvan MG, Lanier LL. NK cells and cancer: you can teach innate cells new tricks. Nat Rev Cancer. 2016;16(1):7–19.

    Article  CAS  PubMed  Google Scholar

  9. Spits H, Bernink JH, Lanier L. NK cells and type 1 innate lymphoid cells: partners in host defense. Nat Immunol. 2016;17(7):758–64.

    Article  CAS  PubMed  Google Scholar

  10. Salimi M, et al. A role for IL-25 and IL-33-driven type-2 innate lymphoid cells in atopic dermatitis. J Exp Med. 2013;210(13):2939–50.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Xue L, et al. Prostaglandin D2 activates group 2 innate lymphoid cells through chemoattractant receptor-homologous molecule expressed on TH2 cells. J Allergy Clin Immunol. 2014;133(4):1184–94.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  12. Salimi M, Ogg G. Innate lymphoid cells and the skin. BMC Dermatol. 2014;14:18.

    Article  PubMed  PubMed Central  Google Scholar

  13. Gronke K, Nielsen MK, Diefenbach A. Innate lymphoid cells, precursors and plasticity. Immunol Lett. 2016;

  14. Sonnenberg GF, Artis D. Innate lymphoid cells in the initiation, regulation and resolution of inflammation. Nat Med. 2015;21(7):698–708.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  15. Dadi S, et al. Cancer Immunosurveillance by tissue-resident innate lymphoid cells and innate-like T cells. Cell. 2016;164(3):365–77.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  16. Kirchberger S, et al. Innate lymphoid cells sustain colon cancer through production of interleukin-22 in a mouse model. J Exp Med. 2013;210(5):917–31.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Bie Q, et al. Polarization of ILC2s in peripheral blood might contribute to immunosuppressive microenvironment in patients with gastric cancer. J Immunol Res. 2014; 2014: p. 923135

  18. Jovanovic IP, et al. Interleukin-33/ST2 axis promotes breast cancer growth and metastases by facilitating intratumoral accumulation of immunosuppressive and innate lymphoid cells. Int J Cancer. 2014;134(7):1669–82.

    Article  CAS  PubMed  Google Scholar

  19. Tian Z, et al. Innate lymphoid cells involve in tumorigenesis. Int J Cancer. 2016;138(1):22–9.

    Article  CAS  PubMed  Google Scholar

  20. van Beek JJP, et al. Innate Lymphoid Cells in Tumour Immunity. Biomedicines. 2016;4(1).

  21. Vallentin B, et al. Innate lymphoid cells in Cancer. Cancer Immunol Res. 2015;3(10):1109–14.

    Article  CAS  PubMed  Google Scholar

  22. Carrega P, et al. The yin and Yang of innate lymphoid cells in Cancer. Immunol Lett. 2016;

  23. Goc J, Hepworth MR, Sonnenberg GF. Group 3 innate lymphoid cells: regulating host-commensal bacteria interactions in inflammation and cancer. Int Immunol. 2016;28(1):43–52.

    CAS  PubMed  Google Scholar

  24. Zawlik I, et al. Immune checkpoints in aggressive breast cancer subtypes. Neoplasma. 2016;63(5)

  25. Bertucci F, et al. The PD1/PDL1 axis, a promising therapeutic target in aggressive breast cancers. Oncoimmunology. 2016;5(3):e1085148.

    Article  PubMed  Google Scholar

  26. Haanen JB, Robert C. Immune checkpoint inhibitors. Prog Tumor Res. 2015;42:55–66.

    PubMed  Google Scholar

  27. Ji M, et al. PD-1/PD-L1 pathway in non-small-cell lung cancer and its relation with EGFR mutation. J Transl Med. 2015;13:5.

    Article  PubMed  PubMed Central  Google Scholar

  28. Chan TS, Khong PL, Kwong YL. Pembrolizumab and lenalidomide induced remission in refractory double-hit lymphoma. Ann Hematol; 2016;95(11):1917–8.

  29. Aoun F, et al. Checkpoint inhibitors in bladder and renal cancers: results and perspectives. Immunotherapy. 2015;7(12):1259–71.

    Article  CAS  PubMed  Google Scholar

  30. Webster RM. The immune checkpoint inhibitors: where are we now? Nat Rev Drug Discov. 2014;13(12):883–4.

    Article  CAS  PubMed  Google Scholar

  31. McCoy KD, Le Gros G. The role of CTLA-4 in the regulation of T cell immune responses. Immunol Cell Biol. 1999;77(1):1–10.

    Article  CAS  PubMed  Google Scholar

  32. Theurich S, et al. Local tumor treatment in combination with systemic Ipilimumab immunotherapy prolongs overall survival in patients with advanced malignant melanoma. Cancer Immunol Res. 2016;4(9):744–54.

    Article  CAS  PubMed  Google Scholar

  33. Oliphant CJ, et al. MHCII-mediated dialog between group 2 innate lymphoid cells and CD4(+) T cells potentiates type 2 immunity and promotes parasitic helminth expulsion. Immunity. 2014;41(2):283–95.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  34. Mirchandani AS, et al. Type 2 innate lymphoid cells drive CD4+ Th2 cell responses. J Immunol. 2014;192(5):2442–8.

    Article  CAS  PubMed  Google Scholar

  35. Hepworth MR, et al. Innate lymphoid cells regulate CD4+ T-cell responses to intestinal commensal bacteria. Nature. 2013;498(7452):113–7.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  36. Voehringer D, Koschella M, Pircher H. Lack of proliferative capacity of human effector and memory T cells expressing killer cell lectinlike receptor G1 (KLRG1). Blood. 2002;100(10):3698–702.

    Article  CAS  PubMed  Google Scholar

  37. Ouyang Q, et al. Age-associated accumulation of CMV-specific CD8+ T cells expressing the inhibitory killer cell lectin-like receptor G1 (KLRG1). Exp Gerontol. 2003;38(8):911–20.

    Article  CAS  PubMed  Google Scholar

  38. Kobayashi T, et al. NKT cell-targeted vaccination plus anti-4-1BB antibody generates persistent CD8 T cell immunity against B cell lymphoma. Oncoimmunology. 2015;4(3):e990793.

    Article  PubMed  PubMed Central  Google Scholar

  39. Huang Y, et al. IL-25-responsive, lineage-negative KLRG1(hi) cells are multipotential 'inflammatory' type 2 innate lymphoid cells. Nat Immunol. 2015;16(2):161–9.

    Article  CAS  PubMed  Google Scholar

  40. Renner P, et al. KLRG1+ natural killer cells protect against pulmonary metastatic disease by immunosurveillance. Oncoimmunology. 2014;3:e28328.

    Article  PubMed  PubMed Central  Google Scholar

  41. Malaise M, et al. KLRG1+ NK cells protect T-bet-deficient mice from pulmonary metastatic colorectal carcinoma. J Immunol. 2014;192(4):1954–61.

    Article  CAS  PubMed  Google Scholar

  42. Shiow LR, et al. CD69 acts downstream of interferon-alpha/beta to inhibit S1P1 and lymphocyte egress from lymphoid organs. Nature. 2006;440(7083):540–4.

    Article  CAS  PubMed  Google Scholar

  43. Park CO, Kupper TS. The emerging role of resident memory T cells in protective immunity and inflammatory disease. Nat Med. 2015;21(7):688–97.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  44. Mackley EC, et al. CCR7-dependent trafficking of RORgamma(+) ILC creates a unique microenvironment within mucosal draining lymph nodes. Nat Commun. 2015;6:5862.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  45. Xu H, et al. IL-17-producing innate lymphoid cells are restricted to mucosal tissues and are depleted in SIV-infected macaques. Mucosal Immunol. 2012;5(6):658–69.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  46. Bernink JH, et al. Human type 1 innate lymphoid cells accumulate in inflamed mucosal tissues. Nat Immunol. 2013;14(3):221–9.

    Article  CAS  PubMed  Google Scholar

  47. Munneke JM, et al. Activated innate lymphoid cells are associated with a reduced susceptibility to graft-versus-host disease. Blood. 2014;124(5):812–21.

    Article  CAS  PubMed  Google Scholar

  48. Basakran NS. CD44 as a potential diagnostic tumor marker. Saudi Med J. 2015;36(3):273–9.

    Article  PubMed  PubMed Central  Google Scholar

  49. Termeer C, et al. Targeting dendritic cells with CD44 monoclonal antibodies selectively inhibits the proliferation of naive CD4+ T-helper cells by induction of FAS-independent T-cell apoptosis. Immunology. 2003;109(1):32–40.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  50. Bartemes KR, et al. IL-33-responsive lineage- CD25+ CD44(hi) lymphoid cells mediate innate type 2 immunity and allergic inflammation in the lungs. J Immunol. 2012;188(3):1503–13.

    Article  CAS  PubMed  Google Scholar

  51. Ikeda H, Old LJ, Schreiber RD. The roles of IFN gamma in protection against tumor development and cancer immunoediting. Cytokine Growth Factor Rev. 2002;13(2):95–109.

    Article  CAS  PubMed  Google Scholar

  52. Xu X, et al. IFN-gamma induces cell growth inhibition by Fas-mediated apoptosis: requirement of STAT1 protein for up-regulation of Fas and FasL expression. Cancer Res. 1998;58(13):2832–7.

    CAS  PubMed  Google Scholar

  53. Eberl G, MacDonald HR. Selective induction of NK cell proliferation and cytotoxicity by activated NKT cells. Eur J Immunol. 2000;30(4):985–92.

    Article  CAS  PubMed  Google Scholar

  54. Lu B, Yang M, Wang Q. Interleukin-33 in tumorigenesis, tumor immune evasion, and cancer immunotherapy. J Mol Med (Berl). 2016;94(5):535–43.

    Article  CAS  Google Scholar

  55. Gurusamy D, et al. A role for IL-13 in the progression of prostate tumors (TUM10P.1046). J Immunol. 2015;194(1 Supplement)):211–27.

    Google Scholar

  56. Dhakal M, et al. IL-13Ralpha1 is a surface marker for M2 macrophages influencing their differentiation and function. Eur J Immunol. 2014;44(3):842–55.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  57. Carrega P, et al. NCR(+)ILC3 concentrate in human lung cancer and associate with intratumoral lymphoid structures. Nat Commun. 2015;6:8280.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

We are grateful to the Key laboratory project of Xinjiang, Nature Science Foundation China and Medical Research Council for support. The work was also supported by the National Institute for Health Research (NIHR) Oxford Biomedical Research Centre (BRC). The views expressed are those of the authors and not necessarily those of the NHS, the NIHR or the Department of Health.

Funding

Nature Science Foundation of China(U1603282). Medical Research Council. CAMS-Oxford Institute. The funding bodies had no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Availability of data and materials

All data are available within the main figures and within Additional file 1. Should any further details be required then these are available from the corresponding author.

Author information

Authors and Affiliations

Authors

Contributions

GO and TD designed the study, reviewed data and edited the manuscript. MS, RW, XY, XL, XW, YH, XC, PF undertook experiments, analysed data and edited the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Graham Ogg.

Ethics declarations

Ethics approval and consent to participate

Written ethical approval was obtained from Xinjiang Tumour Hospital ethical committee and Oxford Tropical Research Ethics Committee (587–16) and London - City & East Research Ethics Committee (16/LO/1607). All participants gave informed written consent to participate.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Additional file

Additional file 1:

Figure S1. Representative staining of ILC populations. ILC were gated on lineage negative, CD45+, CD127+ cells and based on the expression of CRTH2 and c-Kit divided into ILC1 (CRTH2-, c-Kit-), ILC2 (CRTH2+, c-Kit +/−) and ILC3 (CRTH2-, c-Kit+). Figure S2 Representative example of ILC1, ILC2, ILC3 phenotypic analysis from benign breast tissue. Figure S3 Representative example of ILC1, ILC2, ILC3 phenotypic analysis from malignant breast tissue. Figure S4 Representative example of ILC1, ILC2, ILC3 phenotypic analysis from malignant GI tumour tissue. Figure S5 Representative example of ILC1, ILC2, ILC3 phenotypic analysis from paralesional GI tumour tissue. Table S1 Patient characteristics. (PDF 5287 kb)

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Salimi, M., Wang, R., Yao, X. et al. Activated innate lymphoid cell populations accumulate in human tumour tissues. BMC Cancer 18, 341 (2018). https://doi.org/10.1186/s12885-018-4262-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s12885-018-4262-4

Keywords
