The SBRT database initiative of the German Society for Radiation Oncology (DEGRO): patterns of care and outcome analysis of stereotactic body radiotherapy (SBRT) for liver oligometastases in 474 patients with 623 metastases

  • 1Email authorView ORCID ID profile,
  • 2,
  • 3,
  • 4,
  • 5,
  • 6,
  • 7,
  • 8,
  • 9,
  • 1,
  • 10,
  • 11,
  • 12,
  • 13,
  • 14,
  • 15,
  • 16,
  • 17,
  • 18 and
  • 19
BMC Cancer201818:283

https://doi.org/10.1186/s12885-018-4191-2

  • Received: 24 October 2017
  • Accepted: 6 March 2018
  • Published:
Open Peer Review reports

Abstract

Background

The intent of this pooled analysis as part of the German society for radiation oncology (DEGRO) stereotactic body radiotherapy (SBRT) initiative was to analyze the patterns of care of SBRT for liver oligometastases and to derive factors influencing treated metastases control and overall survival in a large patient cohort.

Methods

From 17 German and Swiss centers, data on all patients treated for liver oligometastases with SBRT since its introduction in 1997 has been collected and entered into a centralized database. In addition to patient and tumor characteristics, data on immobilization, image guidance and motion management as well as dose prescription and fractionation has been gathered. Besides dose response and survival statistics, time trends of the aforementioned variables have been investigated.

Results

In total, 474 patients with 623 liver oligometastases (median 1 lesion/patient; range 1–4) have been collected from 1997 until 2015. Predominant histologies were colorectal cancer (n = 213 pts.; 300 lesions) and breast cancer (n = 57; 81 lesions). All centers employed an SBRT specific setup. Initially, stereotactic coordinates and CT simulation were used for treatment set-up (55%), but eventually were replaced by CBCT guidance (28%) or more recently robotic tracking (17%). High variance in fraction (fx) number (median 1 fx; range 1–13) and dose per fraction (median: 18.5 Gy; range 3–37.5 Gy) was observed, although median BED remained consistently high after an initial learning curve. Median follow-up time was 15 months; median overall survival after SBRT was 24 months. One- and 2-year treated metastases control rate of treated lesions was 77% and 64%; if maximum isocenter biological equivalent dose (BED) was greater than 150 Gy EQD2Gy, it increased to 83% and 70%, respectively. Besides radiation dose colorectal and breast histology and motion management methods were associated with improved treated metastases control.

Conclusion

After an initial learning curve with regards to total cumulative doses, consistently high biologically effective doses have been employed translating into high local tumor control at 1 and 2 years. The true impact of histology and motion management method on treated metastases control deserve deeper analysis. Overall survival is mainly influenced by histology and metastatic tumor burden.

Keywords

  • Stereotactic body radiotherapy
  • Liver oligometastases
  • Outcome
  • Treated metastases control
  • Oligometastases
  • Oligo-recurrence
  • Sync-oligometastases

Background

Stereotactic body radiation therapy (SBRT) is a dedicated form of external beam radiotherapy which is characterized by a steep dose gradient outside the irradiated tumor volume while escalating the dose inside the target volume. Combined with high precision patient setup and image guidance, this is a highly effective local treatment while achieving a very low toxicity profile. Usually, treatment protocols include higher single doses and the fraction number ranges from a radiosurgery (1 fraction) procedure up to 10 fractions.

Established for treating brain metastases, SBRT has been expanded to treat tumors and metastases at numerous body sites including the lung, liver, bone and prostate. Most experience has been gathered so far for the treatment of NSCLC stage I in inoperable patients where it is now considered standard of care [1].

Very early, SBRT has been evaluated in patients with lung and liver oligometastases as well, though published series only report small patient numbers and different treatment protocols. Recently, with the widespread adoption of the concept of oligo-metastases [2], interest has been increased and larger series have been published [3]. In addition, the terms of oligo-recurrence (metastases detected while primary tumor controlled) and sync-oligometastases (primary tumor and limited number of metastases detected simultaneously) have been coined to depict the occurrence of metastases in the course of oligometastasic disease [4, 5].

In contrast to lung tumors where consistent rates of treated metastases control above 85% have been reported in recent studies, results with regard to treated metastases control of liver lesions are more heterogeneous ranging from 60 to 100% and 55%–90% at 1 and 2 years, respectively [613]. Currently, SBRT is mainly being used if a patient is not medically fit for surgery, not technically resectable or declines surgical intervention as well as if other local therapies like radiofrequency ablation are not possible due to size or location near larger vessels, and is has been added to the possible armentarium of local therapies to be considered besides resection in metastasized CRC [14, 15]. Still, results of liver SBRT are very encouraging especially considering the larger size and the critical location of the lesions compared to other local ablative therapies [8, 10, 16, 17].

Patient selection for treatment is a critical issue. Most benefit regarding progression free survival and possibly overall survival is expected in the state of oligo-recurrence, as witnessed in small prospective series for oligometastatic NSCLC [18, 19]. In addition, the recently presented outcome data of the EORTC-NCRI CCSG-ALM Intergroup 4004 trial could demonstrate in a randomized fashion a positive effect of a local ablative therapy in the form of radiofrequency ablation on OS in patients with liver oligometastases from CRC in addition to chemotherapy [20]. Currently, up to 4 metastases is considered a safe and reasonable number to treat [7], although most series reported a median number of metastases treated of one. Patients should be in a reasonable performance status (KPS ≥70) and the projected survival should be beyond 6 months. The optimal treatment, including the use of SBRT, should be ideally discussed and recommended in a multidisciplinary tumor board [14].

Still, relevant questions remain open regarding optimal patient selection, radiation dose and fractionation or radio-sensibility of different histologies which cannot be answered satisfactorily with the current available data due to the small sample size of the prospective and retrospective reports.

The intent of this pooled analysis is to set-up an outcome-based database and analyse the pattern of care of liver SBRT in Germany and Switzerland. We herein report on the evolution of SBRT, treatment characteristics as well as outcome with respect to treated metastases control and overall survival in 474 patients with 623 liver oligometastases.

Methods

Patient eligibility

All patients treated with SBRT for liver oligometastases after its introduction into the clinic in Germany and Switzerland between 1997 and June 2015 were eligible to be included in this pattern of care analysis. Patient, tumor and treatment characteristics were retrospectively collected and entered in a centralized database. Centers were eligible to provide patient data, if they were performing liver SBRT. No formal inclusion criteria for participation were mandatory.

Inclusion criteria were patients with liver oligometastases from any histology-proven primary solid tumor. Clinical diagnosis was based on radiological imaging without mandatory biopsy of the liver metastasis. Patients receiving liver SBRT were included when they were medically inoperable, presented with non-resectable metastases which were not qualifying for alternative focal treatment such as radiofrequency ablation (RFA) or if they refused invasive therapies. SBRT definition was based on the target volume concept, application of conformal treatment planning and stereotactic or image-guided patient setup as well as hypo-fractionated treatment application. The participating centers used, based on available technology and tumor size and location in correlation to organs-at-risk, a center-specific fractionation schedule.

Patient data was reported anonymously and pooled in a common database by the coordinating center (Department of Radiation oncology, University Hospital of Zurich, Zurich, Switzerland). The database consisted of more than 50 parameters including patient characteristics, primary tumor characteristics and oncological course of disease and further therapies. Additionally, technical data on radiotherapy delivery as well as clinical outcome were collected and further analyzed.

The multicenter data collection, database and analysis was approved by the Ethics committee of the Kanton Zurich, Switzerland (BASEC-Nr. 2016–00744). The data collection of the individual participating centers was approved according to local regulations and approved by the respective local ethics committees.

Endpoints and toxicity definitions

Local failure of a metastatic lesion was defined as either reappearance after complete remission or re-growth after initial partial response to SBRT in follow-up CT or MRI scans. PET-CT scans were used by some centers in equivocal cases to confirm local recurrence. Extrahepatic tumor status was classified as either no evidence of disease (NED), stable (SD) or progressive disease (PD).

Acute toxicity was scored according to the National Cancer Institute CTCAE v3.0 criteria during and up to 3 months after SBRT. Late toxicity was graded using the RTOG/EORTC criteria.

Statistical analysis

Actuarial survival time and freedom from local failure (called “treated metastases control”) were calculated according to the Kaplan-Meier method. For univariate and multivariable analysis of prognostic factors (listed in Table 3) the Cox proportional hazard model was used. Comparison of survival between groups was performed using the log-rank test.

For overall survival, any death and for disease specific survival death from the underlying cancer was defined as an event. For actuarial local tumor control, progression of the treated lesion was defined as stated in the methods section. For this endpoint, patients who died from other diseases without tumor regrowth or progression at that time were censored. All time intervals were calculated from the last day of SBRT.

Biological effective doses were calculated according to the LQ formalism:
$$ BED={n}^{\ast }{d}^{\ast}\left(\frac{d}{\raisebox{1ex}{$\alpha $}\!\left/ \!\raisebox{-1ex}{$\beta $}\right.}\right) $$

with n being the number of fractions, d the daily single fraction dose and using an alpha-beta for tumor tissue of 10 Gy.

BEDisocenter of 150 Gy10 has been determined as descriminator for treated metastases control in a separate ROC analyis (data not shown) and is in line with a previous report from our group [21].

PTV volumes have been used as surrogates for the GTV volumes in the multivariable Cox regression model. This was based on the approach that the results of the multivariable Cox proportional hazard model after imputation of missing GTV values using the R package “mice” were comparable with the respective results after inclusion of PTV instead of GTV (data not shown). As the same variables had been chosen by the model on the respective endpoints, PTV was chosen for use in multivariable cox regression analysis instead of GTV to work with real data, instead of imputed one. Statistical analysis was performed with the R statistical environment version 3.3.1.

Results

Patient and tumor characteristics

In total, 17 German and Swiss academic and non-academic centers participated and collected data on 474 patients with a total of 623 metastases. Patient data was collected from university (n = 13), public (n = 2) and private centers (n = 2) in Germany and Switzerland including overall data from 474 patients with 623 liver oligometastases treated with SBRT. The most frequent primary tumor was colorectal cancer (48.1%), followed by breast cancer (13.3%), non-small cell lung cancer (6.1%) and pancreatic cancer (5.1%). In most patients, one liver metastasis was treated (n = 369). In the remainder cohort two to four metastases (n = 2: 75 pts.; n = 3, 15 pts.; n = 4: 9 pts) have been treated simultaneously. Repeat stereotactic radiotherapy for new liver oligometastases was performed in only 4 patients. Median follow-up was 15 months (range: 1–178 months). SBRT treatment of the liver metastasis was performed at a median time of 27 months (range: 0–392 months) after diagnosis of the primary tumor.

The median number of patients per institution was 13 (range: 2–178), the median number per institution per year was 5 (range: 1–13). Patient and treatment characteristics are summarized in detail in Tables 1 and 2.
Table 1

Patient Characteristics



No. of Patients/ Metastases

Perent

Median

Minimum

Maximum



474 pts.



Age (yr)



64

15

93

Sex

 male

268 pts.

56.7%



 female

206 pts.

43.3%



Pretreatment performance scale (Karnofsky index) (%)



90

40

100

Histology

 Colorectal cancer

228 pts.

48.1%



 Breast cancer

63 pts.

13.3%



 NSCLC

29 pts.

6.1%



 Pancreatic cancer

24 pts.

5.1%



 Others

130 pts.

27.4%



Chemotherapy prior to SBRT

 Yes

325 pts.

65.6%



  No

80 pts.

16.9%



 Unknown

68 pts.

17.6%



Number of liver metastases per patient

474 pts. / 623 mets



1

1

4

 n = 1

372 pts.

78.5%



 n = 2–4

102 pts.

21.5%



Status of extrahepatic disease

 Oligo-recurrence group

119 pts.

25.1%



 Sync-oligometastases group

235 pts.

49.6%



 Unknown

120 pts.

25.3%



Time interval between primary tumor diagnosis and SBRT treatment (months)



27.0

0.0

391.0

Follow-up (months)



15

1

178

Table 2

SBRT Treatment Characteristics



No. of Lesions

Percent

Median

Minimum

Maximum



623



GTV volume (ccm)



27

0.6

699

PTV volume (ccm)



71.3

4.5

1074.0

Single fraction dose (PTV encompassing) in Gy



12

2.1

30.0

Single fraction dose (isocenter) in Gy



18.48

2.95

46.9

Total BED (PTV encompassing) in Gy



69.4

10.4

187.5

Total BED (Isocenter) in Gy



125.9

27.2

292.4

Prescription isodose (%)



80.0

42.0

100.0

Most common prescription isodoses

 95% isodose

70

11.2%



 80% isodose

199

31.9%



 65% isodose

131

21.0%



 60% isodose

38

6.0%



Number of SBRT fractions



3

1

13

 1-fraction SBRT

189

30.3



 3-fraction SBRT

207

33.2



 5-fraction-SBRT

158

25.4



 other fractionation schemes

69

11.1



GTV gross target volume, PTV planning target volume, BED biological effective dose

Patterns of care

SBRT for liver oligometastases was first introduced in 1997 and adopted for clinical evaluation by three university centers between 1997 and 2000. All three centers used a vigorous patient immobilization for setup and a stereotactic frame for target localization. General adoption of SBRT for liver oligometastases developed slowly and broader introduction into clinical routine started in 2008 (see Fig. 1a).
Fig. 1
Fig. 1

a Cumulative number of centers practicing liver SBRT and number of treated lesions from 1997 to 2014. b Change of prescribed biologically effective dose (BED) for SBRT liver oligometastases from 1997 to 2014

Time trends in dose prescription

Despite careful introduction into clinical routine, no standardized dose and fractionation protocol has emerged over time. On the contrary, significant interinstitutional variation in the single fraction, total dose prescribed, number of fractions and the respective prescription isodose could be observed (Fig. 1b).

There was as significant time-trend in total dose prescribed in the initial phase after introduction of SBRT. The mean BEDisocenter before 2003 was 102.5 Gy, whereas it significantly rose to 134.3 Gy thereafter and remained constant (p < 0.001; Fig. 1b).

Treated metastases control

Treated metastases control in the total cohort with 607 evaluable metastases was 76.1%,63.8% and 55.7% at 1,2 and 3 years (Fig. 3a). In univariate analysis, maximum BED, histology, systemic therapy before SBRT, GTV and PTV volume were all significant predictors for treated metastases control (Fig. 3b-d; Table 3). Patients receiving systemic therapy before SBRT had a worse treated metastases control rate compared to patient who had received no pretreatment therapy. Metastases from colorectal cancer had a significantly worse treated metastases control rate at one year (67%) compared to breast cancer (91%), NSCLC (88%) or other histologies (80%). Patients treated after 2003 had a significant better treated metastases control rate compared to patients treated before. Local control for metastases treated with advanced motion management methods defined as either gating (active breathing control; free breathing gating) or tracking (fiducial based) was significantly higher compared to methods relying on target localization during free breathing, including CBCT based strategies.
Table 3

Univariate and multivariate analysis for local control and overall survival according to patient and tumor characteristics



Univariate



Multivariate




HR (CI)

p-value

HR (CI)

p-value

Local control

Prior CTxa

2.19 (1.23–3.91)

0.008

2.19 (1.18–4.06)

0.13

Histology (CRC)

1.99 (1.31–3.04)

0.001

1.71 (1.04–2.80)

0.03

Histology (BCa)

0.53 (0.25–1.13)

0.10

0.45 (0.19–1.02)

0.06

Histology (NSCLC)

0.86 (0.26–2.85)

0.81

0.67 (0.19–2.35)

0.54

GTV Volumec

1.004 (1.002–1.005)

< 0.001



PTV Volumec

1.002 (1.001–1.003)

< 0.001

1.001 (1.00–1.002)

0.003

BED Isocenterc

0.993 (0.989–0.997)

< 0.001

0.99 (0.98–1.00)

0.002

BED prescriptionc

0.72 (0.51–1.01)

0.003

1.00 (0.99–1.01)

0.970

Advanced Motion managementa

0.46 (0.29–0.72)

< 0.001

0.57 (0.33–0.96)

0.04

Before 2003a

1.50 (1.04–2.16)

0.031

1.02 (0.61–1.70)

0.932

Overall survival

KIc

0.69 (0.51–0.94)

0.02

0.74 (0.53–0.98)

0.06

Gender

0.80 (0.63–1.01)

0.06

0.76 (0.54–1.06)

0.10

Histology (CRC)

0.61 (0.46–0.79)

< 0.001

0.64 (0.45–0.92)

0.01

Histology (BCa)

0.52 (0.36–0.76)

< 0.001

0.60 (0.36–0.99)

0.05

Histology (NSCLC)

1.42 (0.87–2.33)

0.16

1.14 (0.64–2.07)

0.65

Prior CTxa

0.91 (0.65–1.27)

0.58

1.17 (0.76–1.80)

0.47

Extrahepatic statusb

0.81 (0.60–1.1)

0.18

0.83 (0.49–1.43)

0.52

Solitarya

0.73 (0.57–0.92)

0.007

1.12 (0.61–2.03)

0.72

# of liver metastases (1 vs. 2–4)

0.94 (0.72–1.23)

0.65

0.80 (0.52–1.23)

0.32

GTV Volumec

1.003 (1.002–1.004)

< 0.001



PTV Volumec

1.002 (1.001–1.002)

< 0.001

1.002 (1.001–1.003)

< 0.001

Local recurrence after SBRTa

0.88 (0.68–1.51)

0.36

0.82 (0.56–1.19)

0.29

BED isocenterc

0.997 (0.994–1.00)

0.06

1.00 (0.99–1.004)

0.97

CTx chemotherapy, BCa breast cancer, BED biologically effective dose, GTV gross tumor volume, PTV planning target volume, PS performance status, HR hazard ratio, CI 95% confidence interval), CRC corolrectal caner, NSCLC non-small cell lung cancer

abinary coded variables with yes vs. no; bcomplete remission/stable disease vs progressive disease; cvolume and minimum biologically effective dose as continuous variables

As sufficient events were available, all variables investigated in univariate analysis were entered in the multivariable proportional hazard cox regression model. As a considerable proportion of GTV volumes (49%) were missing, PTV volumes have been entered in multivariate analysis instead. Systemic therapy before SBRT, PTV volume, BEDisocenter, motion management methood, and SBRT treatment before 2003 remained as independently significant variables.

Overall survival

Overall survival in the total cohort was 70%, 29% and 15% at one, 3 and 5 years (Fig. 2a). Seven patients experienced a long-term survival and could be observed at 10 years of follow-up. In univariate Cox regression analysis, KPS, histology (breast and colorectal cancer having a better prognosis) and GTV volume were all significant predictors for overall survival (Table 3). Interestingly, pre-SBRT chemotherapy, number of metastases treated and extrahepatic disease status were not associated with overall survival.

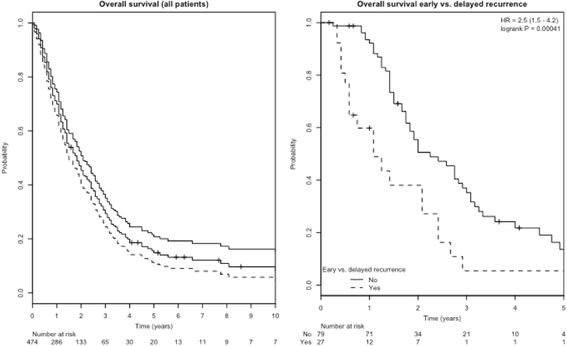

Fig. 2
Fig. 2

Kaplan-Meier estimated overall survival a) for the whole patient cohort and b) stratified for patients with local recurrence within 6 months

Also, achieving treated metastases control did not influence overall survival in univariate analysis. In contrast, early local recurrence (within 6 months of SBRT) versus late local recurrence was significantly associated with worse survival (Table 3; Fig. 2b).

In multivariable cox regression, only tumor volume, histology (specifically colorectal histology) and early vs. delayed local recurrence remained independent predictors of overall survival.

Toxicity

Acute toxicity data was available for 73% of the patients (n = 347). Grade 1–2 toxicity was observed in 23% and consisted mostly of fatigue, nausea and diarrhea. Grade 3 acute toxicity occurred in less than 1% with one gastric ulcer being the most severe side effect. No toxicity greater grade 3 was observed.

Chronic toxicity data was available for 44% of the patients (n = 208) and consisted of fatigue, nausea, diarrhea, liver enzyme elevation and jaundice. Chronic grade 1–2 was observed in 10% and chronic grade 3 toxicity in 1.4% with no chronic toxicity greater than grade 3 reported. Grade 3 toxicity was due to radiation hepatitis with enzyme elevation (n = 1), liver fibrosis (n = 3; one with consecutive varicosis and bleeding) and necrotic reaction of treated metastases (n = 1).

Discussion

In this mutli-center database centralized data on patient, tumor and treatment characteristics of a large body of patients treated with SBRT for liver oligometastases to describe the evolution and patterns of care of liver SBRT between 1997 and 2015 in Germany and Switzerland has been collected. In addition, outcome data including factors predicting for treated metastases control and overall survival as well as toxicity could be successfully gathered: for treated metastases control, systemic therapy before SBRT, PTV volume, BEDisocenter, motion management methood, could be identified as independently significant variables; for overall survival, PTV volume, histology (colorectal histology exhibiting a better prognosis) and early vs. delayed local recurrence were independent predictors of overall survival.

Implementation of liver SBRT started in 1997 with CT-simulated frame-based stereotactic approach. With the advent of 4D CT and CBCT based image-guidance in addition to reports on safety and efficacy of liver SBRT, a steady and continued adoption of this technology started in 2005 (Fig. 1a). Over time, more advanced motion management methods were introduced, mainly implemented with robotic tracking systems, and − although scarcely − other motion mitigation approaches like active breathing control or gating.

Although SBRT had been introduced at a high-quality level across all centers, the applied fractionation scheme greatly varied with regards to fractionation and total dose (Table 2). Nevertheless, the applied mean BEDisocenter was consistently high and reflects the general notion of the initial dose finding learning curve (Fig. 1b). In these first years, a consistent shift to higher prescription doses was observed around 2003 (Fig. 1b) which translated in a noticeable improvement in treated metastases control. This indicates that centers starting SBRT for liver oligometastases after 2003 did not include a strategy of dose escalation to gain experience, but adopted - if possible in the individual patient situation - an effective BED at the time of individual clinical introduction of SBRT. Inhomogeneous dose prescription - i.e. lower prescription doses at the PTV periphery allowing significantly higher doses to build up towards the iso-center – were applied with the 80%- and 65%- isodoses being the most common prescription isodoses.

Unfortunately, most of the previously published studies only report the PTV prescription dose and no details on the dose distribution within the PTV or GTV, so that a direct comparison of the different doses applied is difficult [8, 10, 11, 2226]. Therefore, despite a consistent dose response relationship reported in most of these publications, a clear conclusion on the minimally required PTV prescription dose or the relevance of inhomogeneous dose distribution within the PTV to achieve a certain level of treated metastases control is difficult.

A clear dose response relationship could be established within our dataset over all histologies for the PTV prescription dose as well as the dose at the isocenter recalculated to the BED using the LQ-formalism. Finally, BEDisocenter remained the strongest factor influencing treated metastases control in MVA. Consistent with our dose-response analysis in primary and secondary lung tumors [21], we believe that the dose distribution and the BED within the GTV is clinically more relevant than the minimally PTV prescribed dose and BEDisocenter serves as the most robust GTV dose surrogate in this respect. In our liver SBRT cohort, If a BEDisocenter of greater than 150 Gy10 was applied (Fig. 3d), a treated metastases control of > 80% at 2 years could be achieved which is comparable to the published literature [21].
Fig. 3
Fig. 3

Kaplan-Meier estimated treated metastases control for all patients (a) and stratified by (b) pre-SBRT chemotherapy, (c) histology, (d) BEDisocenter

As reported by other groups, tumor volume (GTV) and planning target volume (PTV) were predictive of local failure as well [27, 28], though this has not been found in other reports [10, 11]. Most interestingly, pre-SBRT chemotherapy and colorectal histology appeared as negative predictive factors for treated metastases control. This has been separately addressed by our group where we could show that the negative influence of pre-SBRT chemotherapy on treated metastases control was the major confounding factor of the inferior treated metastases control in colorectal histology [16]. In contrast, breast cancer histology appears to be more responsive to SBRT irrespective of the pre-SBRT chemotherapy status. Due to the small numbers of patients with breast cancer in our cohort, this finding was only borderline significant in multivariable analysis (Table 3).

Considering the general negative selection of patients which were not considered as surgical candidates, overall survival appears to be reasonable and indicates that longer term survival beyond 5 years is possible after SBRT.

In multivariable only histology, tumor volume and early vs. delayed local recurrence remained independent predictors of overall survival. Interestingly, pre-treatment chemotherapy did not influence overall survival in our cohort. This is in contrast to the recent update of the EORTC 40004 trial where the addition of RFA to systemic therapy improved overall survival and the report by Fode et al. on SBRT for oligo-metastatic solid cancer where pre-SBRT chemotherapy was associated with improved survival as well. Most probably, patient selection is the dominating factor for these contrary findings and reflects the difficulties in comparing different series for oligo-metastatic solid tumors: in our series, 75% of patients had a singular liver oligometastases in contrast to 15% [20] and 50% [29].

The finding is the most intriguing finding: patients developing local recurrence within 6 months compared to later time points had a significant worse overall survival. As developing a local recurrence per se (not taking a time factor into account) had no impact on overall survival, this finding is most probably a reflection of a more aggressive tumor phenotype in these patients and can not necessarily be attributed to the effect of treated metastases control (in the liver) on overall survival. Therefore, it would be desirable to be able to predict the projected individual OS to define which patient would benefit most from local therapies such as SBRT. Further analysis of the dataset will focus on developing predictive models to estimate individual patient’s survival.

Reported toxicity profile for acute and late toxicity was very favorable. Documentation for acute toxicity was very good with 73% and dropped considerable for late toxicity with 44%. We are aware that due to the retrospective nature of the reporting, especially late toxicity scoring must be viewed with caution. Still, no reported grade 4 or 5 toxicity within the follow-up period and a grade 3 rate of less than 2 % seems to be very encouraging and reflects the careful introduction of SBRT with reasonable fractionation schemes for abdominal SBRT.

Conclusions

After an initial learning curve with regards to total cumulative doses, consistently high biologically effective doses have been employed translating into high local tumor control at 1 and 2 years. Through the continuous technical development, the implementation of advanced motion management techniques such as gating with active breathing control, tracking and use of fiducial markers have increased during the last years and contributed to the improvement in treated metastases control over time while minimizing the excellent therapy-related toxicity profile. Besides radiation dose, tumor volume, pre-SBRT chemotherapy and histology have been identified as predictive factors for treated metastases control. OS is mainly governed by histology and tumor volume. Most intriguingly, local recurrence per se did not influence prognosis, but the time-dependent occurrence: patients with early recurrence within 6 months had a significantly worse OS.

Abbreviations

BED:

Biologically effective dose

CT:

Computed tomography

CTCAE:

Common Terminology Criteria for Adverse Events

DEGRO:

Deutsche Gesellschaft für Radiologische Onkologie

EORTC:

Eurpean Organization for Research and Treatment of Cancer

EQD2Gy:

Equivalent dose in 2 Gy

Fx:

Fraction

GTV:

Gross tumor volume

Gy:

Gray

NED:

No evidence of disease

PD:

Progressive disease

PTV:

Planning target volume

RFA:

Radiofrequency ablation

RTOG:

Radiation Therapy Oncology Group

SBRT:

Stereotactic body radiation therapy

SD:

Stable disease

Declarations

Acknowledgments

Not applicable.

Funding

None.

Availability of data and materials

The data that support the findings of this study are available from the AG Stereotaxie und Radiochirurgie of the German Society of Radiation Oncology, but restrictions apply to the availability of these data, which were used under license for the current study, and so are not publicly available. Data are however available from the authors upon reasonable request and with permission of AG Stereotaxie und Radiochirurgie of the German Society of Radiation Oncology.

Authors’ contributions

NA and DH drafted the manuscript, analyzed and interpreted the data. NA and RK performed and approved the statistical analysis. NA, DH, MD, OB, AP, CP, RS, SG, SW, MA, HA, GB, TS, CO, JB-H, TB, MG, VL, GH, RK took part in the data collection, interpretation procedure, drafting and reviewing of the article. All authors approved the presented article before submission and take responsibility for the integrity of the analysis and the respective manuscript.

Authors’ information

Not applicable.

Ethics approval and consent to participate

The multicenter data collection and analysis was approved by the Ethics committee of the Kanton Zurich, Switzerland (BASEC-Nr. 2016–00744) and in addition to local regulations also covered the following institutions:
  1. 1.

    University Hospital Zürich, Department of Radiation Oncology, University of Zurich, Zurich, Switzerland.


  2. 2.

    Strahlentherapie Bautzen, Department of Radiation Oncology, Bautzen, Germany


  3. 3.

    University of Munich – LMU Munich, Department of Radiation Oncology,Munich, German


  4. 4.

    University Hospital Basel, Department of Radiation Oncology, Basel, Switzerland


  5. 5.

    University Medical Center Hamburg-Eppendorf, Department of Radiation Oncology, Hamburg, Germany


  6. 6.

    Strahlenzentrum Hamburg, Department of Radiation Oncology, Hamburg, Germany


  7. 7.

    University Hospital of Cologne, Department of Radiation Oncology, Cologne, Germany


  8. 8.

    University Hospital Würzburg, Department of Radiation Oncology, Würzburg, Germany


  9. 9.

    University Hospital Halle, Department of Radiation Oncology, Halle, Germany


  10. 10.

    Klinikum Passau, Radiation Oncology, Passau, Germany


If necessary, the data collection of the individual participating centers was approved according to local regulations and approved by the respective local ethics committees. The following ethics committees and regulatory bodies were involved in this local approval process:
  1. 1.

    Medizinische Ethik-Komission II, Medizinische Fakultät Mannheim; 2014-413 M-MA-§23bMPG: University Hospital Mannheim, Department of Radiation Oncology, University of Heidelberg, Mannheim, Germany.


  2. 2.

    Ethikkommission der Medizinischen Fakultät Heidelberg; S459–2010:


  3. 3.

    Ethikkommission der Medizinischen Fakultät der Technischen Universität München; 84/16S: Klinikum rechts der Isar- Technische Universität München, Department of Radiation Oncology, Munich, Germany


  4. 4.
    Ethikkommission an der Medizinischen Fakultät der Universität Rostock, A2016–0008:
    1. a.

      Universitätsklinikum Schleswig-Holstein, Department of Radiation Oncology, Kiel/Lübeck, Germany.


    2. b.

      University Hospital Rostock, Department of Radiation Oncology, Rostock, Germany.



  5. 5.

    Ethikkommission der Universität Freiburg, 462/12: University Hospital Freiburg, Department of Radiation Oncology, Freiburg, Germany


  6. 6.

    Ärztekammer: Bezirksärztekammer Nord-Württemberg, Jahnstr. 5, 70,597 Stuttgart: RadioChirurgicum CyberKnife Südwest, Radiation Oncology, Göppingen, Germany.


  7. 7.

    Ethikkommission der Bayerischen Ärztekammer, mb BO 16002: Krankenhaus Barmherzige Brüder, Department of Radiation Oncology, Regensburg, Germany



The participants consent was written as part of the main ethics approval.

Consent for publication

Not applicable.

Competing interests

Marciana Duma is a member of the editorial board (Associate editor) of BMC Cancer. NA confirms that all other authors have nothing to declare at the time of submission and that there are no competing interests to declare.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
University Hospital Zürich, Department of Radiation Oncology, University of Zurich, Rämistrasse 100, 8091 Zurich, Switzerland
(2)
Department of Radiation Oncology, Strahlentherapie Bautzen, Bautzen, Germany
(3)
Department of Radiation Oncology, Krankenhaus Barmherzige Brüder, Regensburg, Germany
(4)
RadioChirurgicum CyberKnife Südwest, Radiation Oncology, Göppingen, Germany
(5)
Department of Radiation Oncology, Universitätsklinikum Schleswig-Holstein, /Lübeck, Kiel, Germany
(6)
University Hospital Mannheim, Department of Radiation Oncology, University of Heidelberg, Mannheim, Germany
(7)
Department of Radiation Oncology, University Hospital Freiburg, Freiburg, Germany
(8)
Department of Radiation Oncology, Klinikum rechts der Isar- Technische Universität München, Munich, Germany
(9)
Department of Radiation Oncology, University of Munich – LMU Munich, Munich, Germany
(10)
Department of Radiation Oncology, University Hospital Rostock, Rostock, Germany
(11)
Department of Radiation Oncology, Leopoldina Hospital Schweinfurt, Schweinfurt, Germany
(12)
Department of Radiation Oncology, University Hospital Würzburg, Würzburg, Germany
(13)
Department of Radiation Oncology, University Hospital Halle, Halle, Germany
(14)
Department of Radiation Oncology, University Hospital Basel, Basel, Switzerland
(15)
Department of Radiation Oncology, University Medical Center Hamburg-Eppendorf, Hamburg, Germany
(16)
Department of Radiation Oncology, Strahlenzentrum Hamburg, Hamburg, Germany
(17)
Department of Radiation Oncology, University Hospital of Cologne, Cologne, Germany
(18)
Klinikum Passau, Radiation Oncology, Passau, Germany
(19)
Department of Radiation Oncology, University Hospital Heidelberg, Heidelberg, Germany

References

  1. Timmerman R. Stereotactic body radiation therapy for inoperable early stage lung cancer. JAMA. 2010;303:1070. https://doi.org/10.1001/jama.2010.261.View ArticlePubMedPubMed CentralGoogle Scholar
  2. Hellman S, Weichselbaum RR. Oligometastases. J Clin Oncol. 1995;13:8–10. https://doi.org/10.1200/JCO.1995.13.1.8.View ArticlePubMedGoogle Scholar
  3. Tree AC, Khoo VS, Eeles RA, Ahmed M, Dearnaley DP, Hawkins MA, Huddart RA, Nutting CM, Ostler PJ, van As NJ. Stereotactic body radiotherapy for oligometastases. Lancet Oncol. 2013;14:e28–37. https://doi.org/10.1016/S1470-2045(12)70510-7.View ArticlePubMedGoogle Scholar
  4. Niibe Y, Hayakawa K. Oligometastases and oligo-recurrence: the new era of cancer therapy. Jpn J Clin Oncol. 2010;40:107–11. https://doi.org/10.1093/jjco/hyp167.View ArticlePubMedPubMed CentralGoogle Scholar
  5. Niibe Y, Yamashita H, Sekiguchi K, Takahashi W, Shiraishi K, Okuma K, Terahara A, Kawamori J, Nakagawa K. Stereotactic body radiotherapy results for pulmonary Oligometastases: a two-institution collaborative investigation. Anticancer Res. 2015;35:4903–8.PubMedGoogle Scholar
  6. Andratschke NH, Nieder C, Heppt F, Molls M, Zimmermann F. Stereotactic radiation therapy for liver metastases: factors affecting local control and survival. Radiat Oncol. 2015;10:287. https://doi.org/10.1186/s13014-015-0369-9.View ArticleGoogle Scholar
  7. Herfarth KK, Debus J, Lohr F, Bahner ML, Rhein B, Fritz P, Höss A, Schlegel W, Wannenmacher MF. Stereotactic single-dose radiation therapy of liver tumors: results of a phase I/II trial. J Clin Oncol. 2001;19:164–70.View ArticlePubMedGoogle Scholar
  8. Katz AW, Carey-Sampson M, Muhs AG, Milano MT, Schell MC, Okunieff P. Hypofractionated stereotactic body radiation therapy (SBRT) for limited hepatic metastases. Int J Radiat Oncol Biol Phys. 2007;67:793–8. https://doi.org/10.1016/j.ijrobp.2006.10.025.View ArticlePubMedGoogle Scholar
  9. Scorsetti M, Clerici E, Comito T. Stereotactic body radiation therapy for liver metastases. J Gastrointest Oncol. 2014;5:190–7. https://doi.org/10.3978/j.issn.2078-6891.2014.039.PubMedPubMed CentralGoogle Scholar
  10. Vautravers-Dewas C, Dewas S, Bonodeau F, Adenis A, Lacornerie T, Penel N, Lartigau E, Mirabel X. Image-guided robotic stereotactic body radiation therapy for liver metastases: is there a dose response relationship? Int J Radiat Oncol Biol Phys. 2011;81:e39–47. https://doi.org/10.1016/j.ijrobp.2010.12.047.View ArticlePubMedGoogle Scholar
  11. Lee MT, Kim JJ, Dinniwell R, Brierley J, Lockwood G, Wong R, Cummings B, Ringash J, Tse RV, Knox JJ, Dawson LA. Phase I study of individualized stereotactic body radiotherapy of liver metastases. J Clin Oncol. 2009;27:1585–91. https://doi.org/10.1200/JCO.2008.20.0600.View ArticlePubMedGoogle Scholar
  12. Wulf J, Guckenberger M, Haedinger U, Oppitz U, Mueller G, Baier K, Flentje M. Stereotactic radiotherapy of primary liver cancer and hepatic metastases. Acta Oncol. 2006;45:838–47. https://doi.org/10.1080/02841860600904821.View ArticlePubMedGoogle Scholar
  13. Klement RJ. Radiobiological parameters of liver and lung metastases derived from tumor control data of 3719 metastases. Radiother Oncol. 2017;123:218–26. https://doi.org/10.1016/j.radonc.2017.03.014.View ArticlePubMedGoogle Scholar
  14. Sterzing F, Brunner TB, Ernst I, Baus WW, Greve B, Herfarth K, Guckenberger M. Stereotactic body radiotherapy for liver tumors: principles and practical guidelines of the DEGRO working group on stereotactic radiotherapy. Strahlenther Onkol. 2014;190:872–81. https://doi.org/10.1007/s00066-014-0714-1.View ArticlePubMedGoogle Scholar
  15. Van Cutsem E, Cervantes A, Adam R, Sobrero A, Van Krieken JH, Aderka D, Aranda Aguilar E, Bardelli A, Benson A, Bodoky G, Ciardiello F, D'Hoore A, Diaz-Rubio E, Douillard J-Y, Ducreux M, Falcone A, Grothey A, Gruenberger T, Haustermans K, Heinemann V, Hoff P, Köhne C-H, Labianca R, Laurent-Puig P, Ma B, Maughan T, Muro K, Normanno N, Osterlund P, Oyen WJG, Papamichael D, Pentheroudakis G, Pfeiffer P, Price TJ, Punt C, Ricke J, Roth A, Salazar R, Scheithauer W, Schmoll HJ, Tabernero J, Taïeb J, Tejpar S, Wasan H, Yoshino T, Zaanan A, ARNOLD D. ESMO consensus guidelines for the management of patients with metastatic colorectal cancer. Ann Oncol. 2016;27:1386–422. https://doi.org/10.1093/annonc/mdw235.View ArticlePubMedGoogle Scholar
  16. Klement RJ, Guckenberger M, Alheid H, Allgäuer M, Becker G, Blanck O, Boda-Heggemann J, Brunner T, Duma M, Gerum S, Habermehl D, Hildebrandt G, Lewitzki V, Ostheimer C, Papachristofilou A, Petersen C, Schneider T, Semrau R, Wachter S, Andratschke N. Stereotactic body radiotherapy for oligo-metastatic liver disease - influence of pre-treatment chemotherapy and histology on local tumor control. Radiother Oncol. 2017; https://doi.org/10.1016/j.radonc.2017.01.013.
  17. Rusthoven KE, Kavanagh BD, Cardenes H, Stieber VW, Burri SH, Feigenberg SJ, Chidel MA, Pugh TJ, Franklin W, Kane M, Gaspar LE, Schefter TE. Multi-institutional phase I/II trial of stereotactic body radiation therapy for liver metastases. J Clin Oncol. 2009;27:1572–8. https://doi.org/10.1200/JCO.2008.19.6329.View ArticlePubMedGoogle Scholar
  18. Iyengar P, Wardak Z, Gerber DE, Tumati V, Ahn C, Hughes RS, Dowell JE, Cheedella N, Nedzi L, Westover KD, Pulipparacharuvil S, Choy H, Timmerman RD. Consolidative radiotherapy for limited metastatic non-small-cell lung cancer: a phase 2 randomized clinical trial. JAMA Oncol. 2018;4:e173501. https://doi.org/10.1001/jamaoncol.2017.3501.View ArticlePubMedGoogle Scholar
  19. Gomez DR, Blumenschein GR, Lee JJ, Hernandez M, Ye R, Camidge DR, Doebele RC, Skoulidis F, Gaspar LE, Gibbons DL, Karam JA, Kavanagh BD, Tang C, Komaki R, Louie AV, Palma DA, Tsao AS, Sepesi B, William WN, Zhang J, Shi Q, Wang X-S, Swisher SG, Heymach JV. Local consolidative therapy versus maintenance therapy or observation for patients with oligometastatic non-small-cell lung cancer without progression after first-line systemic therapy: a multicentre, randomised, controlled, phase 2 study. Lancet Oncol. 2016;17:1672–82. https://doi.org/10.1016/S1470-2045(16)30532-0.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Ruers T, Punt CJA, van Coevorden F, Pierie JP, Borel Rinkes I, Ledermann J, Poston G, Bechstein W, Lentz MA, Mauer M, Van Cutsem E, Lutz M, Nordlinger B. O-018 * Radiofrequency ablation (RFA) combined with chemotherapy for unresectable colorectal liver metastases (CRC LM): Long-term survival results of a randomised phase II study of the EORTC-NCRI CCSG-ALM Intergroup 40004 (CLOCC). Ann Oncol. 2015;26:iv114–5. https://doi.org/10.1093/annonc/mdv235.17.View ArticleGoogle Scholar
  21. Guckenberger M, Klement RJ, Allgäuer M, Andratschke N, Blanck O, Boda-Heggemann J, Dieckmann K, Duma M, Ernst I, Ganswindt U, Hass P, Henkenberens C, Holy R, Imhoff D, Kahl HK, Krempien R, Lohaus F, Nestle U, Nevinny-Stickel M, Petersen C, Semrau S, Streblow J, Wendt TG, Wittig A, Flentje M, Sterzing F. Local tumor control probability modeling of primary and secondary lung tumors in stereotactic body radiotherapy. Radiother Oncol. 2015;0:485–91. https://doi.org/10.1016/j.radonc.2015.09.008.Google Scholar
  22. Schefter TE, Kavanagh BD, Timmerman RD, Cardenes HR, Baron A, Gaspar LE. A phase I trial of stereotactic body radiation therapy (SBRT) for liver metastases. Int J Radiat Oncol Biol Phys. 2005;62:1371–8. https://doi.org/10.1016/j.ijrobp.2005.01.002.View ArticlePubMedGoogle Scholar
  23. Swaminath A, Massey C, Brierley JD, Dinniwell R, Wong R, Kim JJ, Velec M, Brock KK, Dawson LA. Accumulated delivered dose response of stereotactic body radiation therapy for liver metastases. Radiat Oncol Biol. 2015;93:639–48. https://doi.org/10.1016/j.ijrobp.2015.07.2273.View ArticleGoogle Scholar
  24. Høyer M, Swaminath A, Bydder S, Lock M, Méndez Romero A, Kavanagh B, Goodman KA, Okunieff P, Dawson LA. Radiotherapy for liver metastases: a review of evidence. Int J Radiat Oncol Biol Phys. 2012;82:1047–57. https://doi.org/10.1016/j.ijrobp.2011.07.020.View ArticlePubMedGoogle Scholar
  25. Chang EL, Shiu AS, Mendel E, Mathews LA, Mahajan A, Allen PK, Weinberg JS, Brown BW, Wang XS, Woo SY, Cleeland C, Maor MH, Rhines LD. Phase I/II study of stereotactic body radiotherapy for spinal metastasis and its pattern of failure. J Neurosurg Spine. 2007;7:151–60. https://doi.org/10.3171/SPI-07/08/151.View ArticlePubMedGoogle Scholar
  26. Goodman KA, Wiegner EA, Maturen KE, Zhang Z, Mo Q, Yang G, Gibbs IC, Fisher GA, Koong AC. Dose-escalation study of single-fraction stereotactic body radiotherapy for liver malignancies. Int J Radiat Oncol Biol Phys. 2010;78:486–93. https://doi.org/10.1016/j.ijrobp.2009.08.020.View ArticlePubMedGoogle Scholar
  27. Stintzing S, Hoffmann R-T, Heinemann V, Kufeld M, Rentsch M, Muacevic A. Radiosurgery of liver tumors: value of robotic Radiosurgical device to treat liver tumors. Ann Surg Oncol. 2010;17:2877–83. https://doi.org/10.1245/s10434-010-1187-9.View ArticlePubMedGoogle Scholar
  28. Scorsetti M, Comito T, Tozzi A, Navarria P, Fogliata A, Clerici E, Mancosu P, Reggiori G, Rimassa L, Torzilli G, Tomatis S, Santoro A, Cozzi L. Final results of a phase II trial for stereotactic body radiation therapy for patients with inoperable liver metastases from colorectal cancer. J Cancer Res Clin Oncol. 2015;141:543–53. https://doi.org/10.1007/s00432-014-1833-x.View ArticlePubMedGoogle Scholar
  29. Fode MM, Høyer M. Survival and prognostic factors in 321 patients treated with stereotactic body radiotherapy for oligo-metastases. Radiother Oncol. 2015;114:155–60. https://doi.org/10.1016/j.radonc.2014.12.003.View ArticlePubMedGoogle Scholar

Copyright

© The Author(s). 2018

Advertisement
